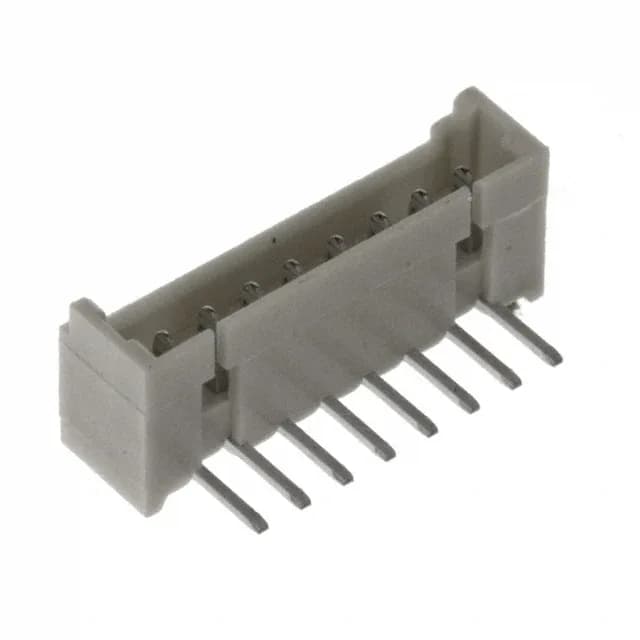

1.25 mm Pitch, 8-Position Right-Angle Header
The 0.126 inch (3.20 mm) insulation height and 0.091 inch (2.30 mm) post length define the standoff from the PCB. The natural PA9T glass-filled nylon (UL94 V-0) handles the 85°C upper operating limit — fine for general-purpose and industrial environments, but not for under-hood automotive where 125°C is common.
Peer Selection: Pitch and Current Trade-off
Compared to the 1-292164-1 (2.00 mm pitch, 11 positions, current varies by wire gauge) and the 1376366-8 (2.20 mm pitch, 8 positions, 5 A), the 1734829-8 offers the tightest pitch at 1.25 mm but the lowest per-contact current at 1 A. If the board has room for a wider pitch and needs higher current, the 1376366-8 carries 5 A at 2.20 mm pitch — a direct alternative for the same 8-position count.
