TE Connectivity AMP Connectors 1744194-6 — Pin Headers

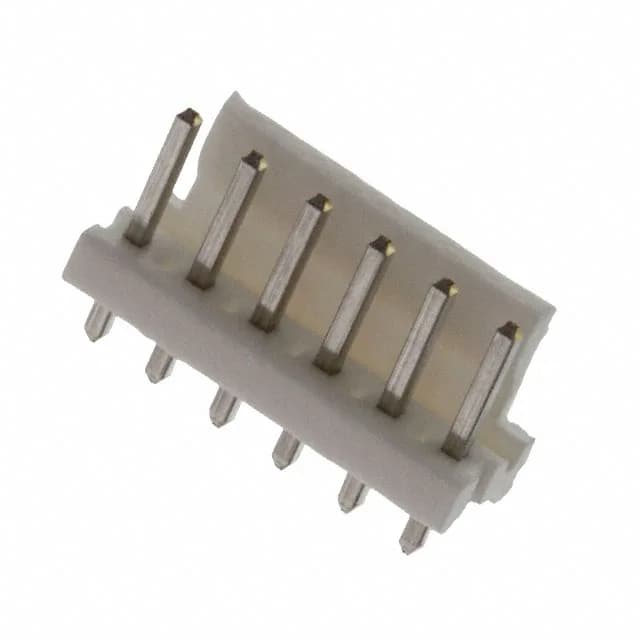

1744194-6 TE Connectivity MTA-156 Header 6 Pos 3.96mm

MPN1744194-6
Active

TE Connectivity AMP Connectors MTA-156 series, 1744194-6, Board to Cable/Wire header, 6 circuits, 0.156" (3.96mm) pitch, single-row, shrouded-1 wall, friction lock, through-hole solder termination, tin-plated square pins, UL94 V-0 natural thermoplastic, rated 600VAC.

$0.4200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1744194-6 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.425\" (10.80mm)
Insulation materialThermoplastic, Glass Filled

All specifications

1744194-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions6
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.550\" (13.97mm)
Contact finish - matingTin
Contact length - mating0.300\" (7.62mm)

Product details

What the 0.156" pitch and friction lock mean for your board

The 1744194-6: The friction lock is the feature that keeps the mating MTA-156 receptacle from backing out when the harness gets tugged; if you've had intermittent opens on a conveyor line, this lock is what was missing. Mates with any standard MTA-156 receptacle housing.

Termination and field-fit notes

Through-hole solder termination — the 0.125" (3.18mm) post length fits standard 1.6mm PCBs with enough tail for a good fillet. Overall contact length is 0.550" (13.97mm). Tin-plated mating surface and tin-plated post.

Frequently asked questions

Is 1744194-6 active and still in production?

Design engineers and buyers need to ensure long-term availability for production runs.

Where can I buy 1744194-6?

Sourcing buyers need immediate stock and pricing to fill BOM lines.

What is the datasheet for 1744194-6?

Designers need to validate fit, electrical, and mechanical specs before using the part.

What is the 1744194-6 equivalent or replacement?

Buyers and brokers need alternatives when the exact part is unavailable or EOL.

What are the pitch and pin count of 1744194-6?

Engineers must confirm compatibility with PCB layout and mating connectors.

Does 1744194-6 have a friction lock or shrouding?

Maintenance techs and designers need to know if the connector retains cables securely.
