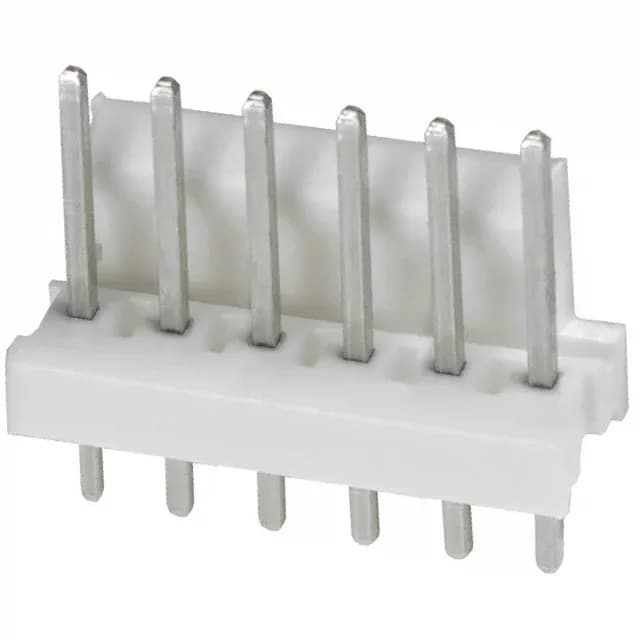

TE Connectivity AMP Connectors MTA-100, Header, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 1 Wall, Friction Lock, Tin Mating and Post Finish, UL94 V-0, -55°C ~ 105°C, Active
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
For a 6-position board-to-wire connection in a machine or control panel, that lock resists the cable tug that would pull a plain pin header loose.
Six circuits is a common count for a small sensor harness, a power tap, or a daisy-chain jumper.
RoHS3 compliant. The base product number is 1744214, covering the full MTA-100 header family.
It mates with TE MTA-100 receptacle housings and IDC connectors that accept a 0.100" pitch, 6-position, single-row interface with a friction lock feature. The tin-plated male pins match the tin-plated female contacts in the standard MTA-100 receptacle.
Yes, the fastening type is Friction Lock, which is integrated into the 1-wall shroud. It provides retention against cable pull without requiring a separate latch.
