Board-to-wire header for power distribution

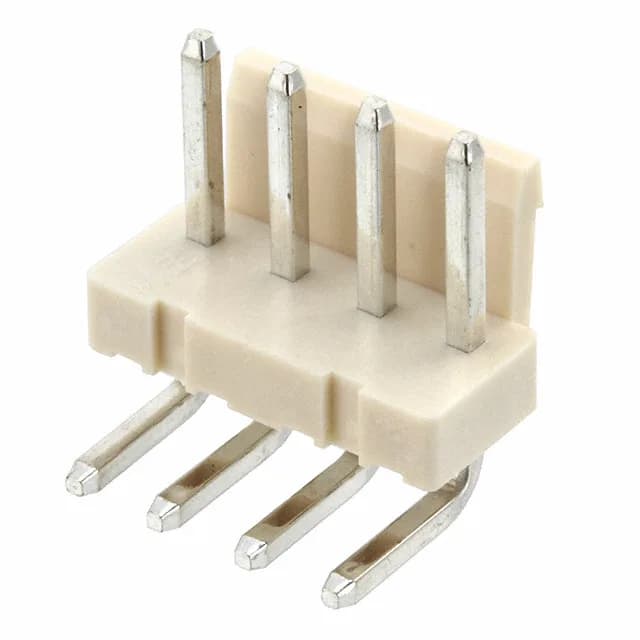

The 1744428-4: This is a board-to-cable/wire header from TE's Economy Power series, designed for power distribution in general-purpose, industrial, and lighting applications. It carries 7.5A per circuit at 250VAC, with tin-plated contacts at 80.0µin (2.03µm) on both mating and post sides — a plating thickness that handles moderate mating cycles without gold's cost premium.
Footprint and mounting: right-angle, through-hole
The 3.96mm pitch and single-row layout keep the PCB footprint compact for a 4-position power header, with a 0.142" (3.60mm) solder post for through-hole mounting.
Locking and compliance: friction lock, glow wire, UL94 V-0
Glow wire compliant and rated UL94 V-0, this header suits safety-certified assemblies in lighting and industrial control panels.
