TE Connectivity AMP Connectors 1744428-6 — Pin Headers

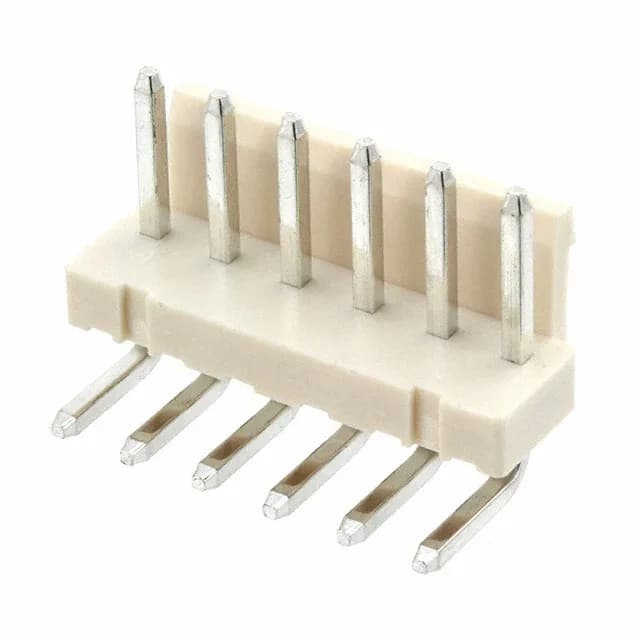

1744428-6 TE Connectivity Economy Power Header, 6 Pos

MPN1744428-6
Active

TE Connectivity AMP Connectors Economy Power series, 1744428-6, 6-position single-row right-angle header, 3.96mm pitch, 7.5A per contact at 250VAC, tin-plated brass contacts, friction lock, shrouded 1-wall, UL94 V-0, Glow Wire Compliant, through-hole solder termination.

$1.0600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1744428-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEconomy Power
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1744428-6 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C ~ 105°C
Contact materialBrass
Insulation height0.339\" (8.61mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

1744428-6 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesGlow Wire Compliant
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions6
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Contact finish - matingTin
Contact length - mating0.338\" (8.59mm)
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

Right-angle 6-position header for wire-to-board

The 1744428-6 is a 6-position single-row right-angle header from TE's Economy Power series, designed for wire-to-board connections on a 3.96mm pitch.

Glow Wire and flammability compliance

This header is Glow Wire Compliant, a requirement for household appliances and lighting fixtures that must withstand a glow-wire test without igniting. ROHS3 compliance is confirmed, covering all six restricted substances including the four phthalates added in the 2015 amendment.

Frequently asked questions

Is 1744428-6 RoHS and glow wire compliant?

Yes, it is ROHS3 compliant and Glow Wire Compliant, with a UL94 V-0 rated housing.

Does 1744428-6 have a friction lock and is it a single-row header?

Yes, it is a single-row header with a friction lock for secure mating.

What is the pitch of 1744428-6?

The mating pitch is 0.156" (3.96mm).
