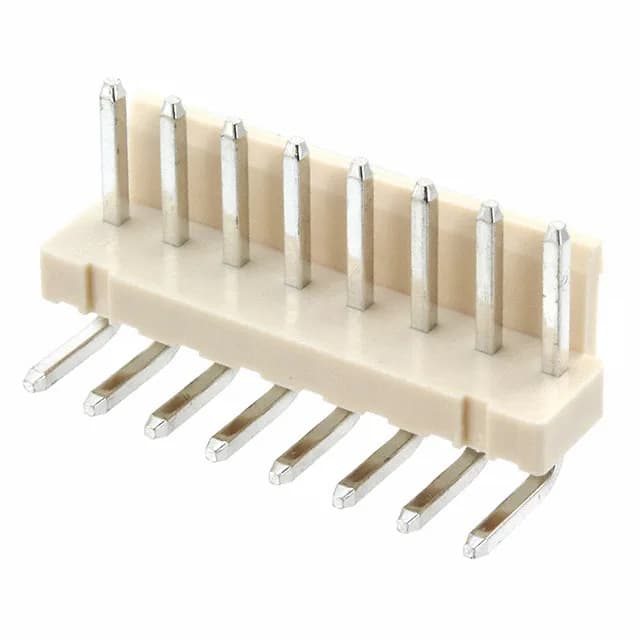

TE Connectivity AMP Connectors Economy Power series, 1744428-8, Board to Cable/Wire header, 8 circuits, 0.156" (3.96mm) pitch, through-hole right-angle, shrouded-1 wall, friction lock, tin contacts, 7.5A, 250VAC, UL94 V-0, glow wire compliant.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.338\" (8.59mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1744428-8 is an 8-position, single-row header from TE's Economy Power series, with a 0.156" (3.96mm) mating pitch. Rated 7.5A per contact at 250VAC, with tin-on-tin contacts (80.0µin thickness on both mating and post sides).
The header has 8 positions on a 0.156" (3.96mm) pitch, single row, all positions loaded.
Yes, it is listed as glow wire compliant, with a UL94 V-0 rated polyamide housing.
Yes, it is a header from the Economy Power series designed to mate with the matching Economy Power receptacle housing and crimp terminals. The friction lock engages with the corresponding latch on the socket.
