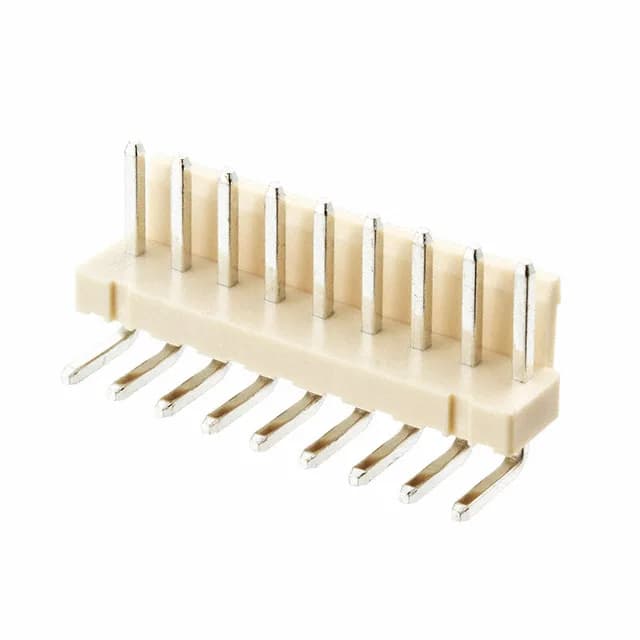

TE Connectivity AMP Connectors Economy Power series header, 1744428-9, 9-position single-row, 0.156" (3.96mm) pitch, right-angle through-hole, shrouded 1 wall, tin-plated contacts, rated 7.5A at 250VAC, glow wire compliant, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.338\" (8.59mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1744428-9 is a single-row header from TE's Economy Power series, built for board-to-cable/wire applications. Its 0.156" (3.96mm) pitch and 9 positions loaded all give you a compact but serviceable footprint for distributing 7.5A per contact at 250VAC.
0.156" (3.96mm) pitch, single-row. That matches the standard Economy Power receptacle footprint.
