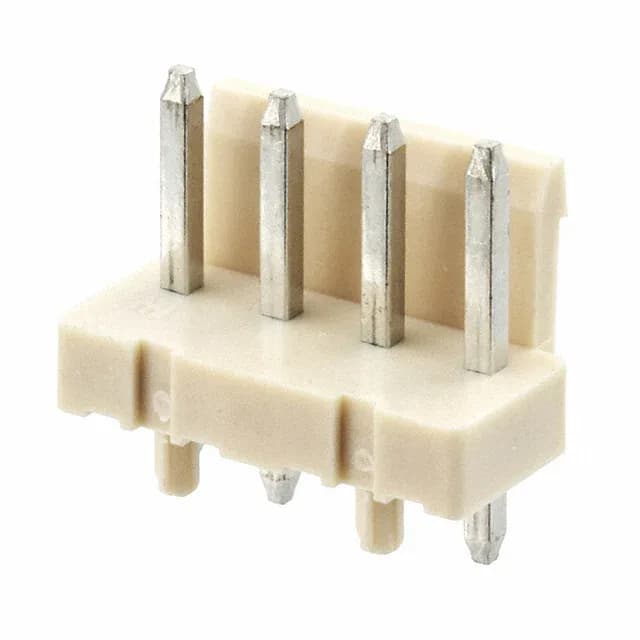

The 1744429-4 is a 4-position, single-row header from TE's Economy Power series, pitched at 3.96mm (0.156-inch) — a spacing common in industrial power and lighting circuits where you need room for 7.5A per contact without crowding the board. It's a shrouded 1-wall design with a friction lock, so the mating receptacle stays put under vibration without needing a screw or latch.
1744429-4 TE Economy Power Header 4POS 3.96mm
MPN1744429-4
Active
TE Connectivity AMP Connectors Economy Power header, 1744429-4, 4 positions, 3.96mm pitch, 7.5A, 250VAC, shrouded 1-wall, friction lock, through-hole solder, tin-plated contacts, UL94 V-0, glow wire compliant, active production.
$0.3500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEconomy Power
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.127\" (3.22mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Overall contact length | 0.575\" (14.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
| Contact finish thickness - post | 120.0µin (3.05µm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
