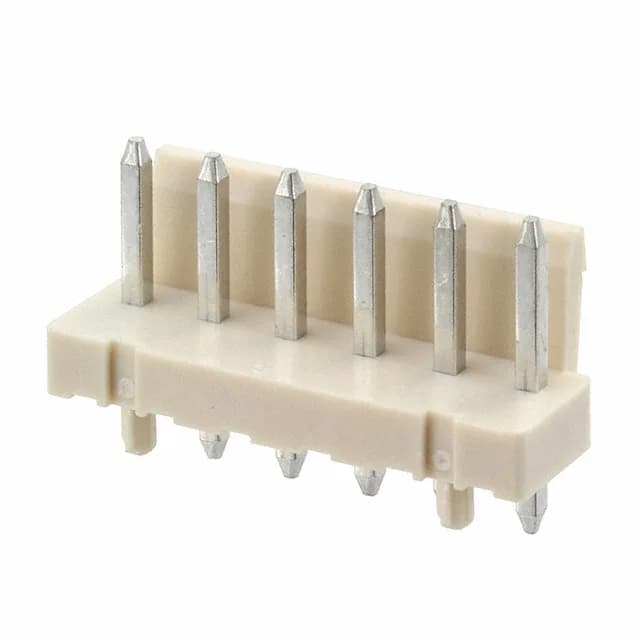

TE Connectivity AMP Connectors, Economy Power series, Board to Cable/Wire, Header, Male Pin, 6 Positions, 1 Row, 0.156" (3.96mm) Pitch, Solder, Through Hole, Friction Lock, Tin Contacts, 7.5A, 250VAC, UL94 V-0, Glow Wire Compliant
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.127\" (3.22mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Overall contact length | 0.575\" (14.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
| Contact finish thickness - post | 120.0µin (3.05µm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
The board guide feature helps the assembler seat the header squarely during through-hole soldering.
The 250 VAC rating covers single-phase mains in most regions. Derate the current if the ambient temperature pushes above 25 °C; the operating range tops out at 105 °C.
Yes — the fastening type is friction lock, which provides a positive retention against vibration without requiring a separate locking clip or screw.
The mating pitch is 0.156 inch (3.96 mm), single row. That matches the standard Economy Power receptacle pitch.
Yes, it is ROHS3 compliant per the manufacturer status.
