TE Connectivity AMP Connectors 1744489-3 — Pin Headers

1744489-3 TE Connectivity Header, 3 Pos, 3.96mm

MPN1744489-3
Active

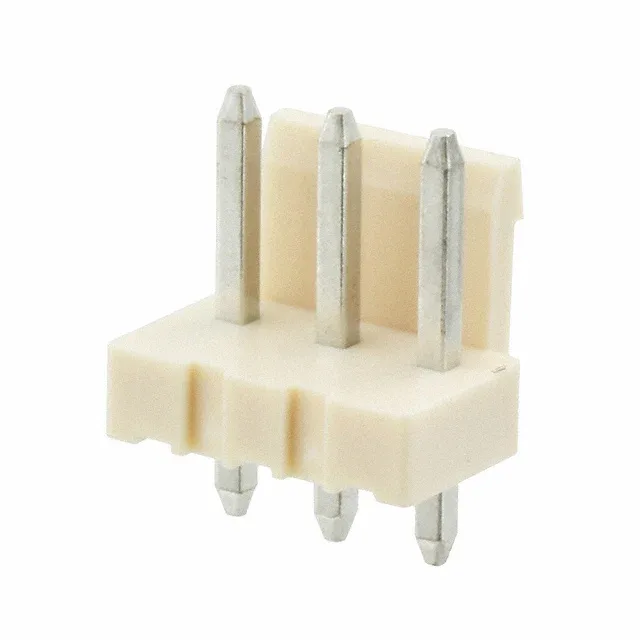

TE Connectivity AMP Economy Power header, 1744489-3, 3-position single-row, 0.156" (3.96 mm) pitch, shrouded 1-wall, through-hole solder termination, tin-plated square pins, friction lock, UL94 V-0 natural nylon housing, glow wire compliant, rated 7.5 A at 250 VAC.

$0.5500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEconomy Power
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1744489-3 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C~105°C
Contact materialBrass
Insulation colorNatural
Insulation height0.127\" (3.22mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1744489-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesGlow Wire Compliant
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions3
Contact finish - postTin
Contact length - post0.145\" (3.68mm)
Overall contact length0.575\" (14.60mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)
Contact finish thickness - post120.0µin (3.05µm)
Contact finish thickness - mating120.0µin (3.05µm)

Product details

Glow wire compliance per IEC 60695-2-11 means this header can be used in lighting and industrial equipment where a glowing heating element must not sustain ignition.

Current, Voltage, and Contact Finish

In a lighting fixture that is mated once at installation, this is not a limitation. The 0.303" (7.70 mm) mating length provides enough wipe for the receptacle contact to clean the tin surface on insertion. Above 85°C ambient, derate the 7.5 A per the housing material curve — the polyamide (nylon) loses mechanical strength as it approaches its continuous-use ceiling.

Frequently asked questions

What is the mating connector for 1744489-3?

The 1744489-3 mates with a TE Economy Power receptacle housing that accepts crimp terminals. Confirm the circuit count (3 positions) and pitch (0.156") match the receptacle part before ordering.

Is 1744489-3 glow wire compliant?

Yes, the header carries the Glow Wire Compliant feature. It meets the glow-wire ignition test requirements for lighting and industrial equipment per IEC 60695-2-11.
