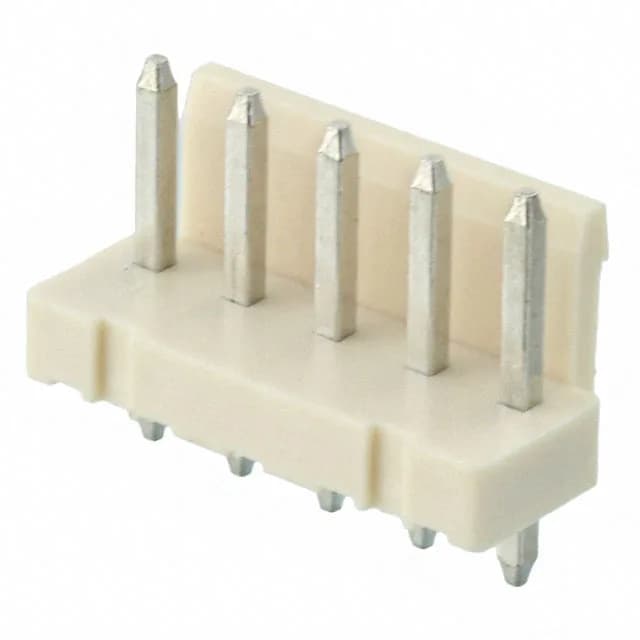

TE Connectivity AMP Economy Power series header, 1744489-5, single-row vertical through-hole, 5 positions, 0.156 inch (3.96 mm) pitch, 7.5 A per circuit, 250 VAC, tin-plated brass contacts, friction lock, 1-wall shroud, UL94 V-0, Glow Wire Compliant, -25 to 105 °C.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.127\" (3.22mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Overall contact length | 0.575\" (14.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
| Contact finish thickness - post | 120.0µin (3.05µm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
The 1744489-5 is a single-row, 5-position vertical header from TE's Economy Power series, pitched at 0.156 inch (3.96 mm). The friction lock and 1-wall shroud secure the mating housing and guide insertion without over-constraining the cable exit.
The connector is ROHS3 Compliant and rated UL94 V-0, with Glow Wire Compliant housing material that passes IEC 60695-2-11.
The style is Board to Cable/Wire and the series is Economy Power.
