TE Connectivity AMP Connectors 1761606-3 — Pin Headers

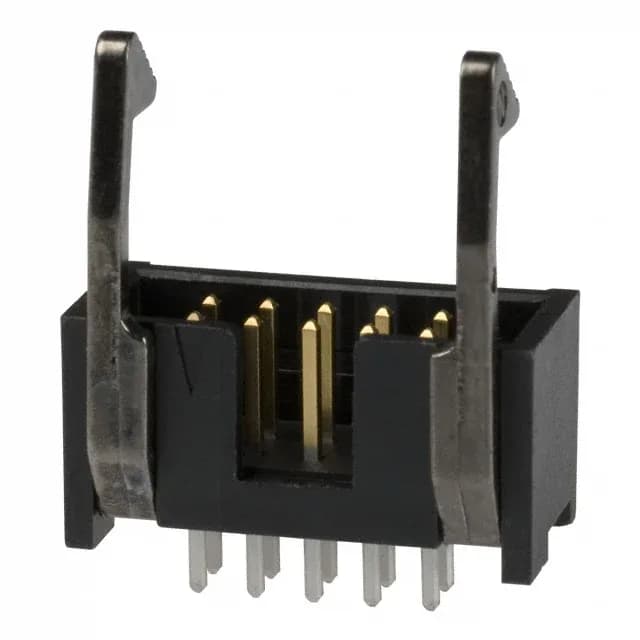

1761606-3 TE AMP-Latch Header 10 Pos 2.54mm

MPN1761606-3
Active

TE Connectivity AMP-Latch 1761606-3, Board to Cable/Wire header, 10 circuits, 2.54mm pitch, dual row, shrouded 4-wall, latch lock/eject hooks, through-hole solder, 1A per contact, 250VAC, -65°C to 105°C, UL94 V-0.

$5.1200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1761606-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1761606-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

1761606-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

10-Position Shrouded Header for AMP-Latch IDC Ribbon Cable

It features a full 4-wall shroud and latch lock/eject hooks for secure mating and positive retention in vibration-prone environments. The header is through-hole solder terminated, with gold or gold-palladium plating on the mating surface (30.0µin) and tin on the post (100.0µin), rated 1A per contact at 250VAC over -65°C to 105°C.

Mating and Retention for Cable Assemblies

A keying slot in the shroud prevents mis-mating with non-keyed or incorrectly keyed counterparts, reducing assembly errors.

No stock-holding claim; availability varies by distributor.

Frequently asked questions

How can I order 1761606-3 or check stock?

The 1761606-3 is an active TE AMP-Latch header. We source it per RFQ against your BOM quantity — submit a quote request for current pricing and lead time. No stock-holding claim on our side; availability confirmed at quote.

What receptacle mates with 1761606-3?

This header mates with standard AMP-Latch IDC socket connectors (e.g., 1658622 series) in the same 10-position, 2.54mm pitch, dual-row layout. The latch lock/eject hooks and keying slot ensure correct orientation and retention.
