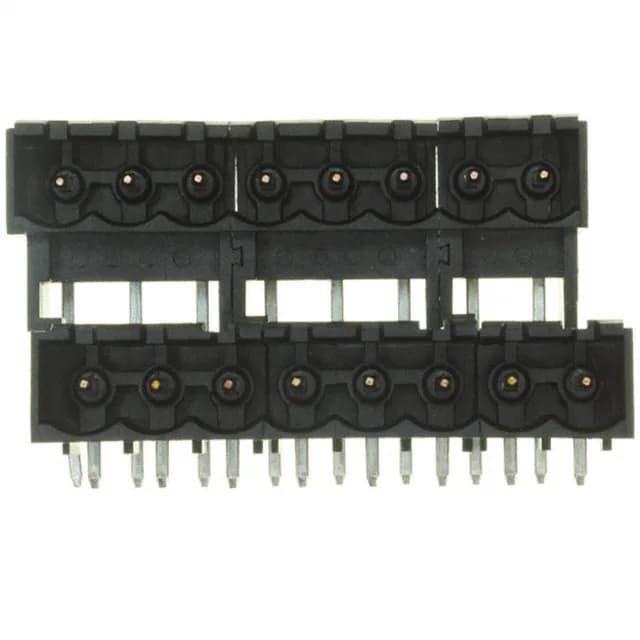

Buchanan Header for Terminal Block Wiring
The 1776166-8: Rated 12 A at 300 V per UL, the header handles moderate power distribution within a single connector. The tin-plated mating finish suits applications with infrequent reconnection — typical for terminal block headers that stay mated for the equipment life.
Dual-Level Layout and Side Interlocking
