TE Connectivity AMP Connectors 1776282-2 — Pin Headers, Sockets & Housings

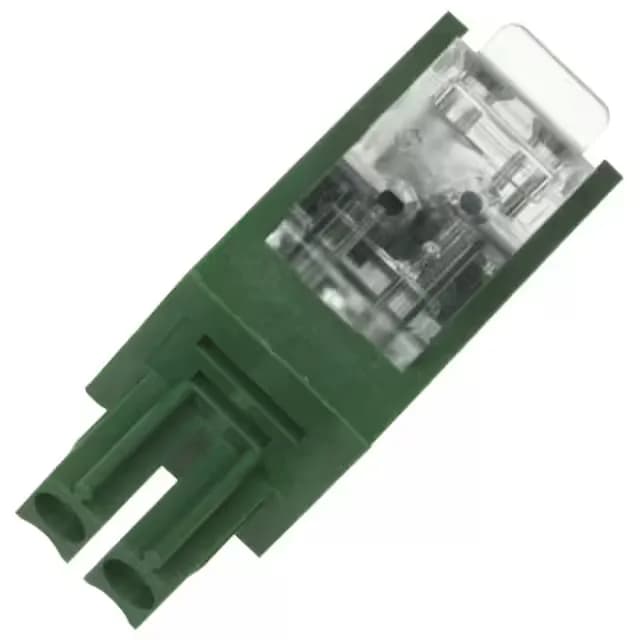

TE Connectivity 1776282-2 Buchanan IDC Plug, 2-Pos, 3.50mm

MPN1776282-2
Obsolete

TE Connectivity AMP Connectors Buchanan plug, order code 1776282-2, 2 positions, 1 level, 0.138" (3.50mm) pitch, 5 A, 250 V, tin-plated mating contacts, free-hanging in-line, IDC termination, 22-24 AWG.

$2.3100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1776282-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1776282-2 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL250 V
Current - UL5 A
Plug wire entry180°
Wire gauge or range - AWG22-24 AWG
Wire gauge or range - mm20.2-0.4mm²
Operating temperature-40°C~80°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyester

All specifications

1776282-2 additional specifications
ParameterValue
Insulation height0.463\" (11.76mm)
Pitch0.138\" (3.50mm)
PackageBulk
Number of levels1
Termination styleIDC
Positions2
Positions per level2
Contact mating finishTin

Product details

IDC wire-entry plug, 2 positions

The 1776282-2 is the 2-position member of the TE Buchanan IDC plug line, a free-hanging female socket with 180° wire entry and a polyester housing. Rated 5 A at 250 V with tin-plated copper alloy contacts, it accepts 22-24 AWG solid or stranded wire and terminates via IDC — no stripping or crimping tool needed.

Obsolete — sourcing note

The 1776282-2 is listed as Obsolete by TE Connectivity AMP Connectors. Available through independent surplus channels; quantities are lot-specific and confirmed at RFQ. No stock-holding claim.

Frequently asked questions

Where can I buy the 1776282-2 and how do I get a price?

The 1776282-2 is available through independent surplus channels. Pricing and availability are confirmed per RFQ against the requested quantity and lot specifics.
