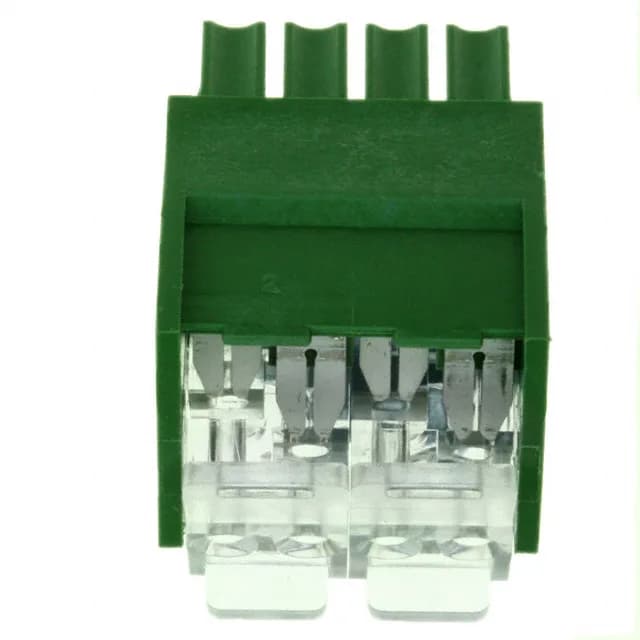

TE Connectivity AMP Connectors Buchanan plug, order code 1776282-4, 4 positions, single level, 0.138" (3.50mm) pitch, 5 A, 250 V, tin-plated mating contacts, IDC termination, free-hanging in-line, green polyester housing.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 250 V |
| Current - UL | 5 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 22-24 AWG |
| Wire gauge or range - mm2 | 0.2-0.4mm² |
| Operating temperature | -40°C~80°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyester |
| Parameter | Value |
|---|---|
| Insulation height | 0.463\" (11.76mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | IDC |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 1776282-4 is the 4-position member of TE's Buchanan IDC plug line, terminated via insulation-displacement for 22-24 AWG wire. Rated 5 A at 250 V with tin-plated mating contacts, the plug mates with the matching Buchanan header and accepts 0.2-0.4 mm² wire.
The IDC termination accepts 22-24 AWG (0.2-0.4 mm²) solid or stranded wire.
