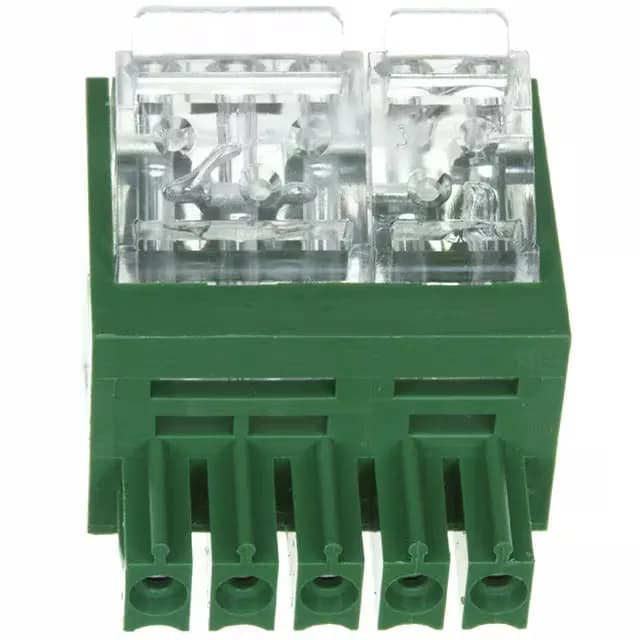

TE Connectivity Buchanan plug, order code 1776282-5, 5 positions, single level, 0.138" (3.50mm) pitch, 5 A, 250 V, tin-plated mating contacts, free-hanging in-line, IDC termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 250 V |
| Current - UL | 5 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 22-24 AWG |
| Wire gauge or range - mm2 | 0.2-0.4mm² |
| Operating temperature | -40°C~80°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyester |
| Parameter | Value |
|---|---|
| Insulation height | 0.463\" (11.76mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | IDC |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The 1776282-5 is a 5-position plug from TE's Buchanan series, terminated via IDC for 22-24 AWG wire (0.2-0.4mm²). Rated 5 A at 250 V with tin-plated mating contacts, the free-hanging housing accepts wire entry at 180° and operates from -40°C to 80°C.
The 1776282-5 is listed as Obsolete per TE Connectivity's product lifecycle status. Availability is confirmed at RFQ through surplus or last-time-buy channels.
Pricing and stock are confirmed per RFQ. The part is obsolete, so quantities are sourced from surplus or last-time-buy inventory.
The connector type is Plug, Female Sockets.
