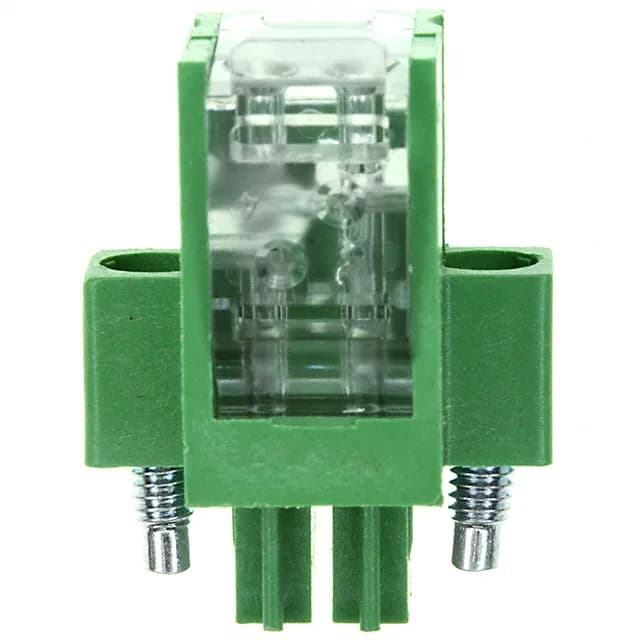

TE Connectivity AMP Connectors Buchanan plug, order code 1776283-2, 2 positions, single level, 0.138" (3.50mm) pitch, 5 A, 250 V, tin-plated mating contacts, IDC termination, free hanging, green.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 250 V |
| Current - UL | 5 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 22-24 AWG |
| Wire gauge or range - mm2 | 0.2-0.4mm² |
| Operating temperature | -40°C~80°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyester |
| Parameter | Value |
|---|---|
| Insulation height | 0.463\" (11.76mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | IDC |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The 1776283-2 is a 2-position plug from the TE Buchanan series, using IDC termination for 22-24 AWG wire (0.2-0.4mm²). Rated 5 A at 250 V with tin-plated mating contacts, it is a free-hanging (in-line) plug with 180° wire entry and a mating flange for secure connection.
The part is from TE Connectivity AMP Connectors; RoHS and REACH compliance status is not confirmed in available records. Consult the original manufacturer documentation.
