TE Connectivity AMP Connectors 1776283-8 — Pin Headers, Sockets & Housings

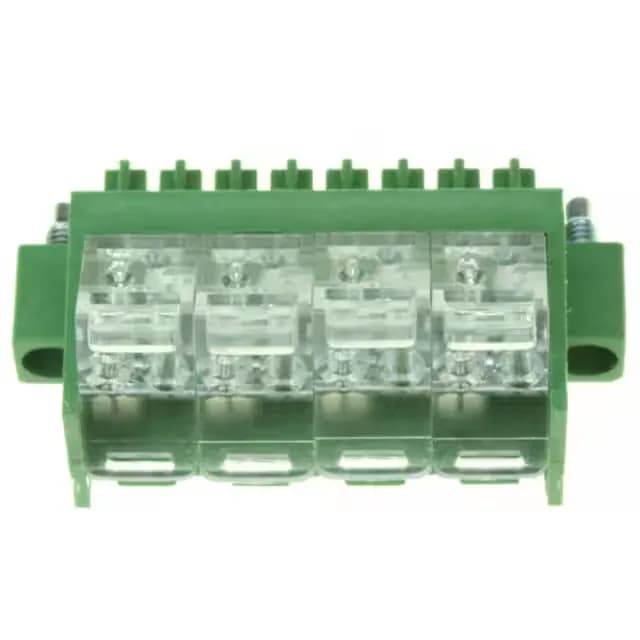

1776283-8 TE Connectivity Buchanan IDC Plug, 8 Pos, 3.50mm

MPN1776283-8
Obsolete

TE Connectivity AMP Connectors Buchanan plug, order code 1776283-8, 8 positions, single level, 0.138" (3.50mm) pitch, 5 A, 250 V, tin-plated mating contacts, IDC termination, free hanging in-line, 180° wire entry.

$1.3345Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1776283-8 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1776283-8 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL250 V
Current - UL5 A
Plug wire entry180°
Wire gauge or range - AWG22-24 AWG
Wire gauge or range - mm20.2-0.4mm²
Operating temperature-40°C~80°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyester

All specifications

1776283-8 additional specifications
ParameterValue
Insulation height0.463\" (11.76mm)
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesMating Flange
Number of levels1
Termination styleIDC
Positions8
Positions per level8
Contact mating finishTin

Product details

IDC termination, 8-position Buchanan plug

The 1776283-8 is the 8-circuit member of TE's Buchanan IDC plug line, terminated via IDC to 22-24 AWG (0.2-0.4mm²) round wire. Rated 5 A at 250 V with tin-plated mating contacts, the plug mates with the corresponding Buchanan header and locks via the mating flange.

Wire entry and housing fit

Free-hanging (in-line) mounting with 180° wire entry; the polyester housing is green and carries a mating flange for secure latching to the header. Insulation height is 0.463" (11.76mm); operating temperature range is -40°C to 80°C.

Frequently asked questions

What is the closest pin-compatible alternative to 1776283-8 in this Pin Headers, Sockets & Housings family?

The Buchanan series includes other position counts and termination styles, but none is listed as a direct replacement. A board-spin or connector-type change may be required.
