TE Connectivity AMP Connectors 2-487937-0 — FFC / FPC Housings

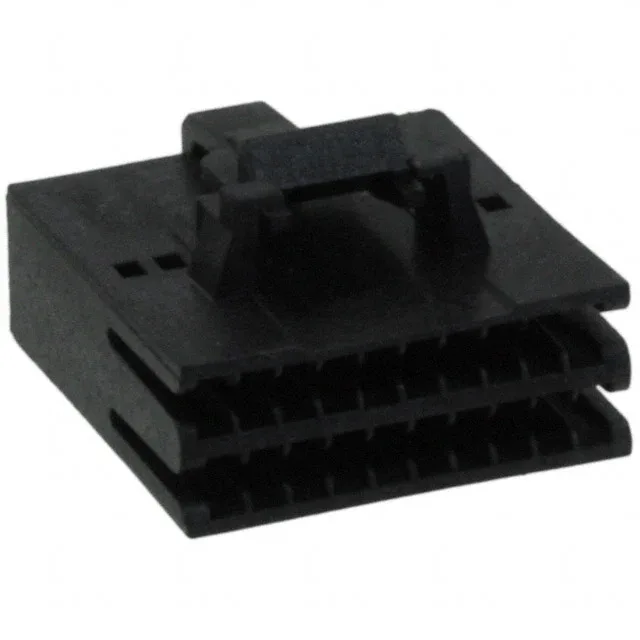

2-487937-0 TE Connectivity AMPMODU System 50 FFC Housing 20

MPN2-487937-0
Active

TE Connectivity AMPMODU System 50, FFC receptacle housing, 20 positions, 0.050" (1.27mm) pitch, dual-row, latch lock, black polyester, UL94 V-0, 1.5 A, 100 V, -55°C ~ 105°C, contacts not included, bulk pack.

$2.9200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-487937-0 specifications
ParameterValue
SeriesAMPMODU System 50
Connector typeHousing for Female Contacts
Flat flex typeFFC
Voltage rating100 V
Current rating1.5 A
Operating temperature-55°C ~ 105°C
Housing colorBlack
Housing materialPolyester
Material flammability ratingUL94 V-0
NoteContacts Not Included
Pitch0.050\" (1.27mm)
PackageBulk
Rows2
Locking featureLatch Lock
FFC, FCB thickness0.05-0.08mm
Positions20

Product details

20-position FFC housing — what you need before ordering

The 2-487937-0 is a 20-position, dual-row FFC receptacle housing from the TE AMPMODU System 50 series. Pitch is 0.050" (1.27mm), which matches the standard System 50 footprint for 0.05-0.08mm thick FFC. The housing alone is a shell; without terminals it cannot carry signal.

Ratings that set the application ceiling

The 20 positions in a dual-row layout keep the overall footprint compact, but the current per circuit limits it to low-power FFC applications — think data lines, not power distribution. That covers most indoor and sheltered industrial environments, but not extended exposure above 105°C ambient.

Frequently asked questions

Does 2-487937-0 include contacts?

No — the listing notes 'Contacts Not Included'. The housing alone cannot carry current.
