Housing for 26-position FFC — contacts ordered separately

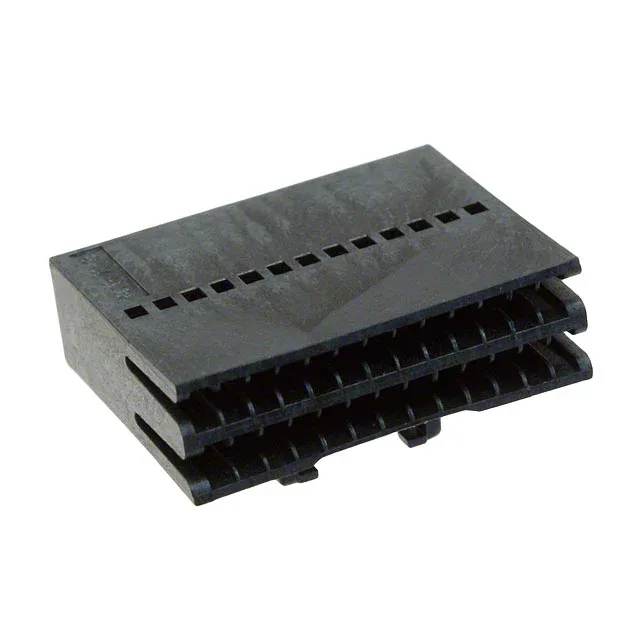

The 2-487937-6: This is the empty receptacle housing from the AMPMODU System 50 series, 26 circuits laid out in two rows on a 0.050" (1.27mm) pitch. The housing accepts FFC with a thickness between 0.05 and 0.08mm.
Pitch and position count set the FFC and board footprint
At 0.050" (1.27mm) pitch, this is a fine-pitch FFC interconnect — the board pads and the FFC conductor spacing must match exactly. The 26 positions in two rows mean the mating header will have 13 contacts per row, and the overall width across the housing is roughly 0.65" (16.5 mm) for the signal row, plus the latch overhang. For signal-level loads (logic, sensor, low-power I/O), this is well within margin.
