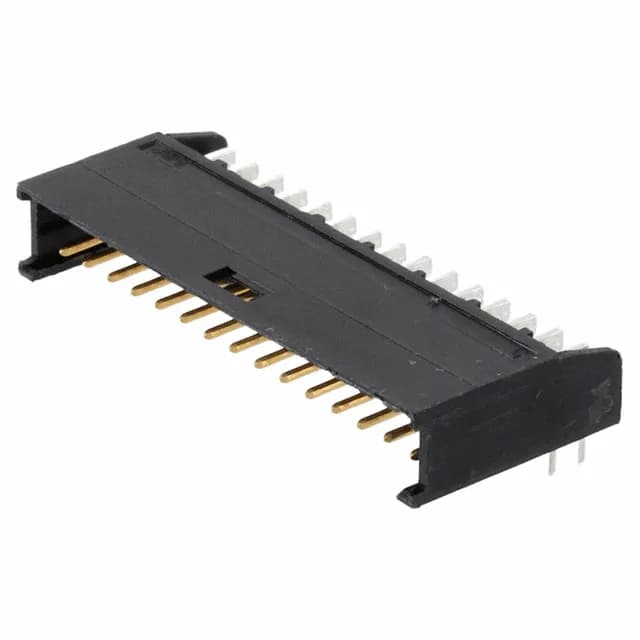

TE Connectivity AMPMODU Mod II header, 280392-2, 30 positions, 0.100" (2.54 mm) pitch, right-angle through-hole, gold-plated mating pins, shrouded 3-wall with detent lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 280392-2: Each square brass pin is rated for 3 A continuous at 40 V, with the current derating curve governed by the UL94 V-0 thermoplastic housing. The 0.260" (6.60 mm) mating pin length provides ample wipe for standard AMPMODU Mod II receptacles, ensuring contact engagement depth within the receptacle's beam range.
This header mates with AMPMODU Mod II receptacles (e.g., 280393 series) and accepts standard 0.025" square pin crimp terminals.
