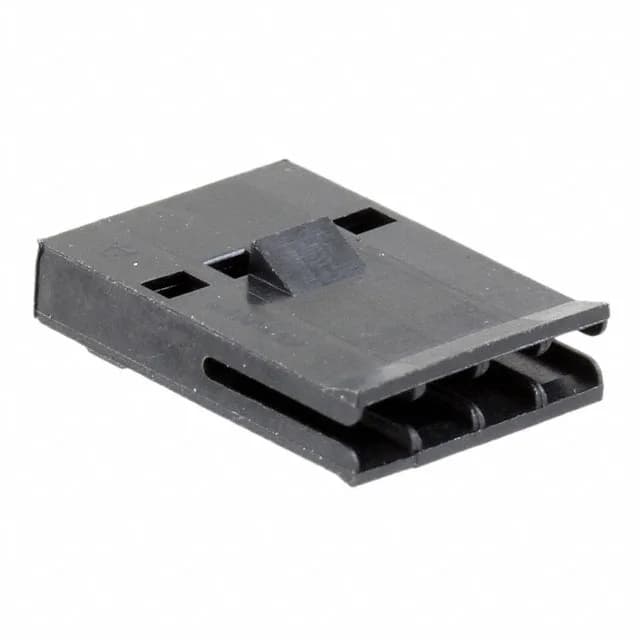

TE Connectivity AMP Connectors 487769-2, FFC receptacle housing for female contacts, 4 circuits, 0.100" (2.54 mm) pitch, single row, detent lock, UL94 V-0 thermoplastic, black, bulk, 1.5 A, 300 V, -65°C to 105°C
| Parameter | Value |
|---|---|
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Positions | 4 |
The 487769-2 is a receptacle housing for female FFC contacts, rated 1.5 A per circuit at 300 V. The housing accepts FFC thickness from 0.05 mm to 0.13 mm.
The detent lock provides positive retention once mated, reducing the risk of disconnect under vibration. The housing is black and ships in bulk.
No. The 487769-2 is a bare housing for female contacts.
The pitch is 0.100" (2.54 mm). This is a standard but less common pitch for modern FFC; confirm your FFC cable matches this spacing before ordering.
