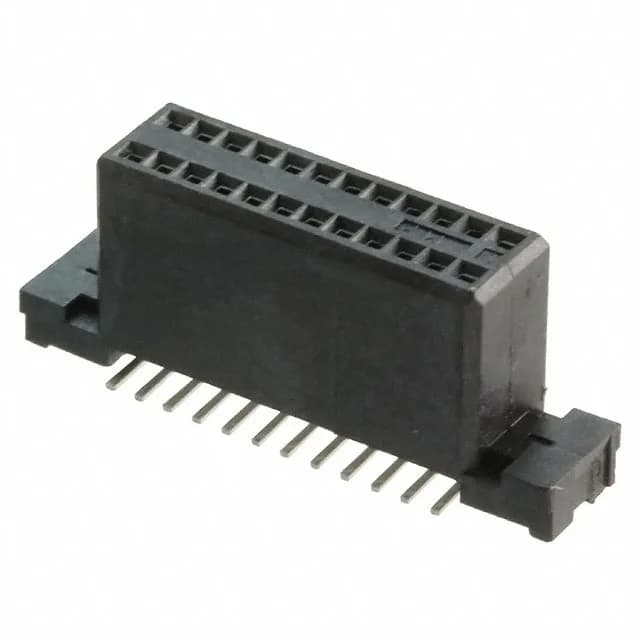

TE Connectivity AMPMODU System 50 receptacle, 24 positions, 2 rows, 0.050" (1.27 mm) pitch, gold mating finish, surface mount, board lock, tube
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.370\" (9.40mm) |
| Insulation material | Polyphthalamide (PPA) |
| Mated stacking heights | 11.94mm, 13.08mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Lock |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The receptacle supports two mated stacking heights: 11.94 mm and 13.08 mm, depending on the mating header selected. This gives the board designer a choice of z-height within the same connector footprint. The voltage rating is 30 VAC — this is a signal-density interconnect, not a power path.
Supplied in tube packaging.
Yes — the housing includes board locks at the ends.
