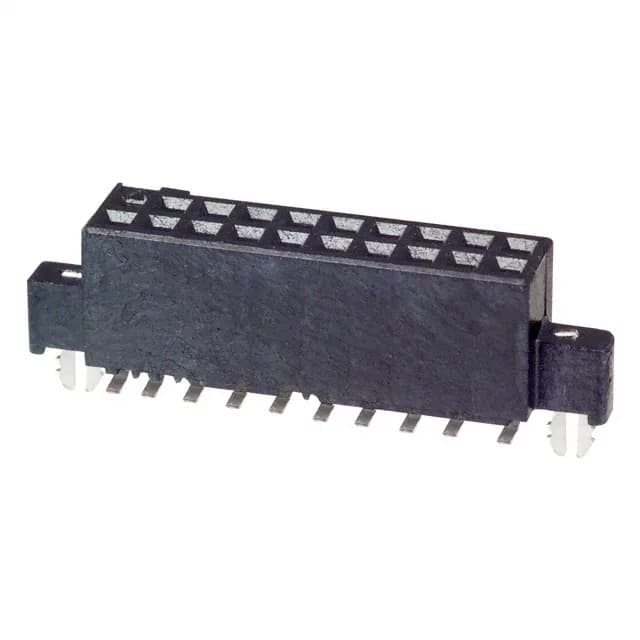

TE Connectivity AMP Connectors 5-104652-2 — Female Socket Headers

5-104652-2 TE Connectivity 20-Position Receptacle 0.050"

MPN5-104652-2
Active

TE Connectivity AMP Connectors AMPMODU 50/50 Grid, 20-position dual-row receptacle, 0.050" (1.27mm) pitch, gold-plated mating contacts, surface mount with board lock, tube package.

$4.9100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104652-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU 50/50 Grid
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-104652-2 key specifications
ParameterValue
SeriesAMPMODU 50/50 Grid
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.187\" (4.75mm)
Insulation materialLiquid Crystal Polymer (LCP)
Mated stacking heights6.35mm, 8.13mm, 9.91mm
StyleBoard to Board or Cable

All specifications

5-104652-2 additional specifications
ParameterValue
PackageTube
FeaturesBoard Lock
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions20
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-board or cable receptacle for 0.050-inch pitch

The 5-104652-2: This is a 20-position, dual-row receptacle from TE's AMPMODU 50/50 Grid series.

Three stack heights from one part number

The receptacle supports mated stacking heights of 6.35mm, 8.13mm, and 9.91mm, covering a range of mezzanine gaps without requalifying the PCB footprint.

Board lock keeps the SMT joint solid

An integrated board lock holds the connector in place during reflow and adds shear resistance once the cable is mated.
