6-Position Triomate FFC Connector at 0.100" Pitch
Mating Cycles and Field Service
The straight cable end type accepts FFC thickness from 0.13 mm to 0.38 mm, covering common flat flex cables used in internal board-to-board links.

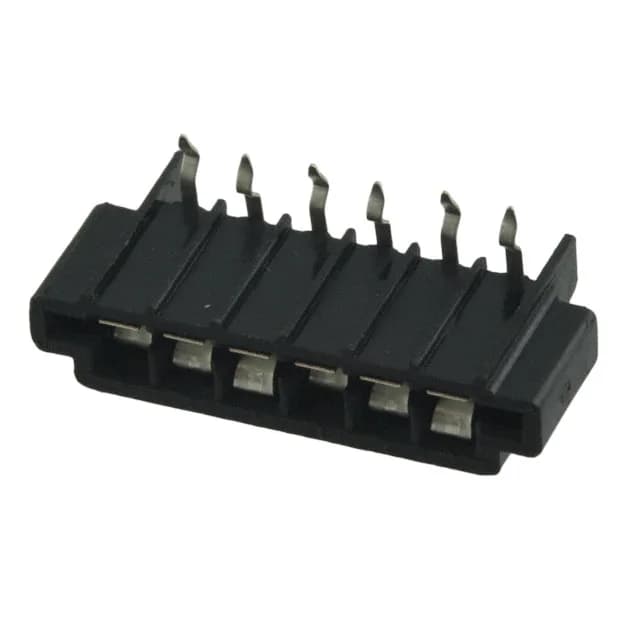

5-520314-6 TE Triomate FFC Connector, 6 Pos, 2.54mm Pitch
MPN5-520314-6
Active
TE Connectivity AMP Connectors Triomate series FFC/FPC connector, 5-520314-6, 6 positions, 0.100" (2.54mm) pitch, right-angle through-hole, top-contact, tin-plated phosphor bronze contacts, rated 1 A at 250 V.
$1.2200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTriomate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Triomate |
| Mounting | Through Hole, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 250V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyester Thermoplastic, Glass Filled |
| Height above board | 0.190\" (4.83mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Termination | Kinked Pin |
| Mating cycles | 25 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.13mm ~ 0.38mm |
| Positions | 6 |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 5-520314-6 in this FFC / FPC Cable Assemblies family?
No official cross-reference or equivalent is listed by the manufacturer. Any alternative must match the 6-position, 0.100" (2.54mm) pitch, right-angle through-hole footprint, top-contact style, and accept 0.13mm to 0.38mm FFC thickness — verify the mating half and board layout before substituting.
