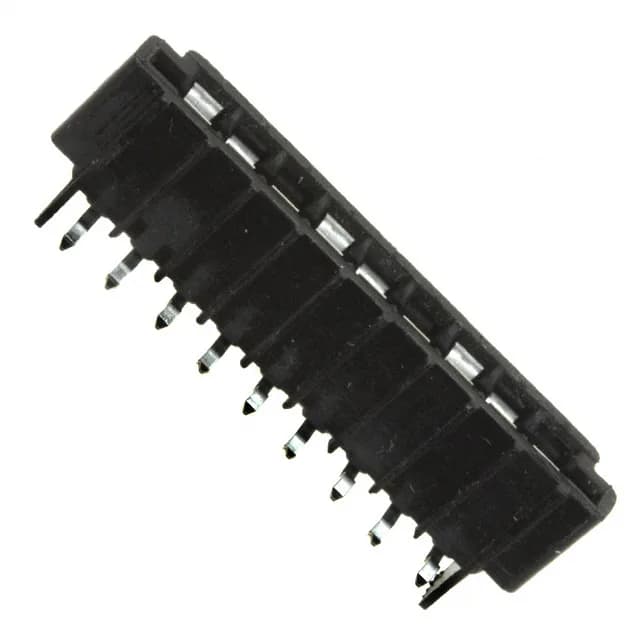

5-520314-9 TE Connectivity Triomate FFC/FPC Connector 9 Pos

MPN5-520314-9
Active

TE Connectivity AMP Connectors Triomate series, 5-520314-9, FFC/FPC connector, 9 positions, 0.100" (2.54mm) pitch, through-hole right-angle, tin-plated phosphor bronze contacts, top contact type, rated 1 A, 250 V, UL94 V-0 housing.

$1.0400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-520314-9 datasheet (PDF)
RoHSRoHS Compliant
SeriesTriomate
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-520314-9 key specifications
ParameterValue
SeriesTriomate
MountingThrough Hole, Right Angle
Cable end typeStraight
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating250V
Current rating1A
Operating temperature-55°C ~ 105°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyester Thermoplastic, Glass Filled
Height above board0.190\" (4.83mm)

All specifications

5-520314-9 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageBulk
TerminationKinked Pin
Mating cycles25
Contact finishTin
FFC, FCB thickness0.13mm ~ 0.38mm
Positions9

Product details

9-Position FFC/FPC Connector for Board-Edge Signal Routing

The contact interface is tin-plated phosphor bronze, rated for 25 mating cycles. Tin is a cost-optimized finish for low-cycle applications; the 25-cycle rating means the connector is suited for equipment that is assembled once and rarely reconnected in the field.

This connector accepts FFC or FPC cables with a thickness range of 0.13 mm to 0.38 mm, and the cable end type is straight. The contact type is top-contact, meaning the cable's conductive pads face upward when inserted into the connector body. The housing is black, and the base product number is 520314.

Comparison with Sibling 5-520314-8

The closest sibling in the Triomate series is the 5-520314-8, which is identical in pitch (0.100" / 2.54mm), mounting (through-hole right-angle), contact finish (tin), and ratings (1 A, 250 V). For a BOM requiring 9 circuits, this is the correct fit; the 8-position version would leave one signal unconnected.

Frequently asked questions

What is the mating cycle rating for the 5-520314-9?

The connector is rated for 25 mating cycles minimum. This is typical for tin-plated contacts in low-cycle applications such as internal board-to-cable connections that are not frequently disconnected in the field.
