TE Connectivity AMPMODU Mod II receptacle, order code 5-532955-3, 20 positions, dual row, 2.54 mm pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

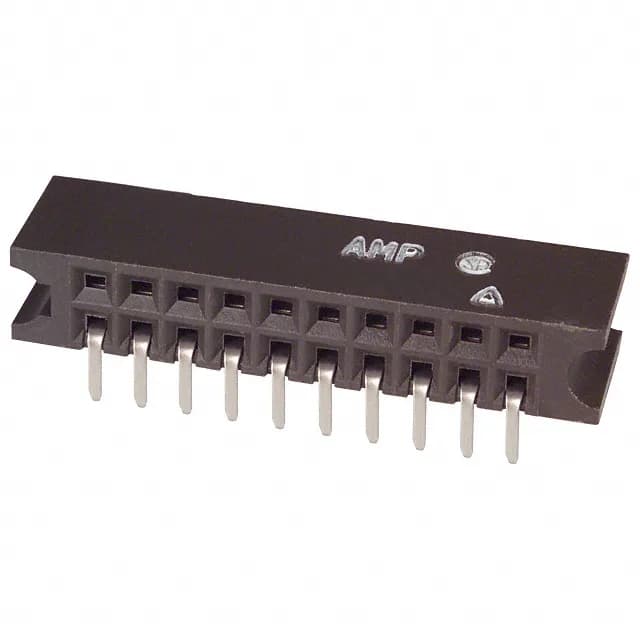

The 5-532955-3: Through-hole right-angle mounting, solder termination, push-pull fastening, and guide pin ears for alignment.
The right-angle orientation routes the receptacle parallel to the PCB, suiting board-edge or space-constrained layouts. The 0.115" (2.92 mm) post length and 0.238" (6.05 mm) insulation height set the board stand-off and mating depth.
