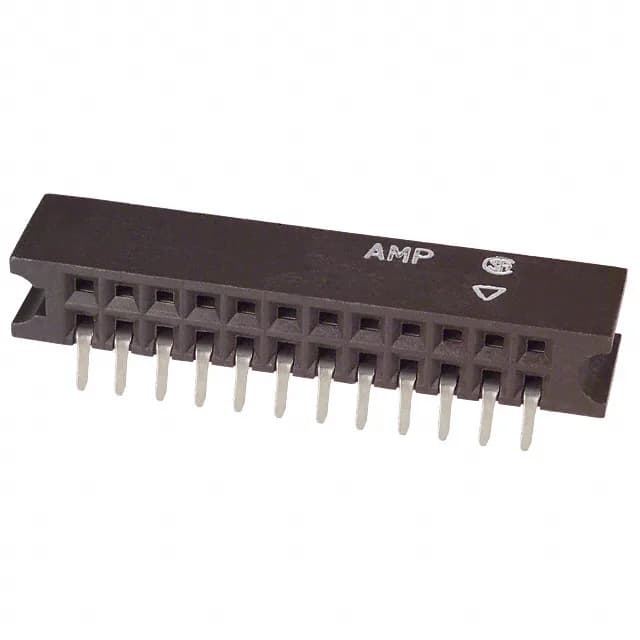

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 5-532955-4, 24 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5-532955-4 is the 24-position dual-row member of the TE AMPMODU Mod II receptacle line, a board-to-board style with push-pull fastening and guide pin ears for alignment. Through-hole right-angle mounting with 0.115" (2.92mm) post length.
Active lifecycle per TE Connectivity. Ships in tube packaging. Quoted to order against BOM quantity; availability confirmed at RFQ.
Orderable under the listed part number. Quoted to order against BOM quantity; availability confirmed at RFQ.
The listed style is Board to Board.
