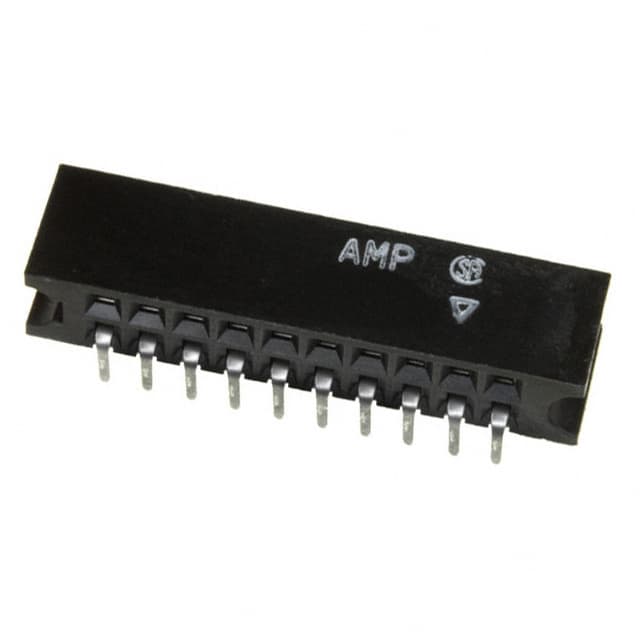

TE Connectivity AMP Connectors 5-532956-3
MPN5-532956-3
Active
$4.2000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
