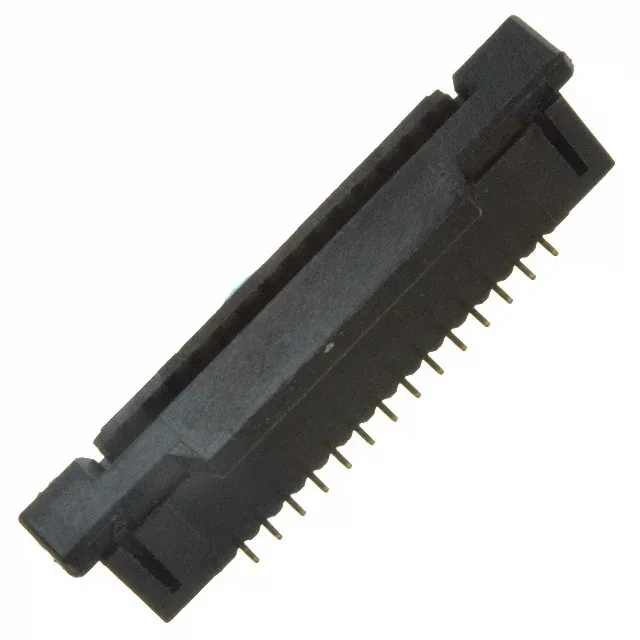

1-1734248-0
TE Connectivity AMP Connectors
10-20°C ~ 85°CZero Insertion Force (ZIF)
Ref. price$0.4747
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 11734 Series
27 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 11734 Series
The TE Connectivity AMP Connectors 11734 Series series groups 27 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common cable end type of Tapered, contact finish of Gold and contact finish thickness of Flash. Variants differ by actuator color, actuator material and connector (Contact type), so you can match the exact actuator color your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 11734 Series part numbers are active and orderable.
Select a variant by
- Actuator color
- Black · Ivory
- Actuator material
- Polyamide (PA9T), Nylon 9T · Thermoplastic
- Connector (Contact type)
- Contacts, Bottom · Contacts, Vertical - 1 Sided
- Current rating
- 0.5A · 1A
- Features
- Solder Retention, Zero Insertion Force (ZIF) · Zero Insertion Force (ZIF)
- Height above board
- 0.081\" (2.05mm) · 0.217\" (5.50mm)
- Housing color
- Black · Natural
- Housing material
- Liquid Crystal Polymer (LCP) · Polyamide (PA9T), Nylon 9T
Shared specifications
- Cable end type
- Tapered
- Contact finish
- Gold
- Contact finish thickness
- Flash
- Contact material
- Phosphor Bronze
- FFC, FCB thickness
- 0.30mm
- Flat flex type
- FPC
- Locking feature
- Slide Lock
- Material flammability rating
- UL94 V-0
- Termination
- Solder
Variant comparison
| Parameter | 1-1734248-0 | 1-1734248-1 | 1-1734248-2 | 1-1734248-3 | 1-1734248-4 | 1-1734248-5 |
|---|---|---|---|---|---|---|
| Actuator color | Black | Black | Black | Black | Black | Black |
| Actuator material | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T |
| Connector (Contact type) | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided |
| Current rating | 1A | 1A | 1A | 1A | 1A | 1A |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Height above board | 0.217\" (5.50mm) | 0.217\" (5.50mm) | 0.217\" (5.50mm) | 0.217\" (5.50mm) | 0.217\" (5.50mm) | 0.217\" (5.50mm) |
| Housing color | Black | Black | Black | Black | Black | Black |
| Housing material | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T |
Request a quote on any TE Connectivity AMP Connectors 11734 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 11734 Series variants differ?
- TE Connectivity AMP Connectors 11734 Series part numbers differ by actuator color, actuator material, connector (Contact type) and current rating. Use the selection guide above to pick by actuator color.
- How many TE Connectivity AMP Connectors 11734 Series part numbers are listed?
- 27 TE Connectivity AMP Connectors 11734 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 11734 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 11734 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
