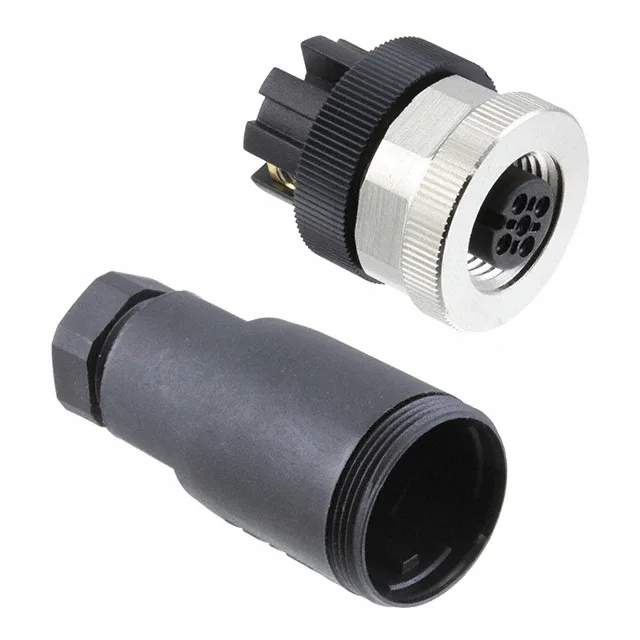

T4110001031-000
TE Connectivity AMP Connectors
3ABlack, Silver
Ref. price$6.3400
Lead time on requestGet quote ›
TE Connectivity AMP Connectors T411 Series
56 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors T411 Series
The TE Connectivity AMP Connectors T411 Series series groups 56 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common applications of Industrial, connector type of Plug, Female Sockets and contact finish - mating of Gold. Variants differ by backshell material, plating, cable opening and color, so you can match the exact backshell material, plating your application requires using the selection guide below.
Select a variant by
- Backshell material, plating
- Brass, Nickel · Polybutylene Terephthalate (PBT), Glass Filled
- Cable opening
- 0.157\" ~ 0.236\" (4.00mm ~ 6.00mm) · 0.236\" ~ 0.315\" (6.00mm ~ 8.00mm)
- Color
- Black, Silver · Silver
- Contact material
- Bronze · Zinc Alloy
- Current rating
- 2A · 4A
- Positions
- 3 · 4 · 5 · 8
- Shell size - insert
- M12-3 · M12-4 · M12-5 · M12-8
- Shielding
- Shielded · Unshielded
Shared specifications
- Applications
- Industrial
- Connector type
- Plug, Female Sockets
- Contact finish - mating
- Gold
- Contact finish thickness - mating
- 3.00µin (0.076µm)
- Fastening type
- Threaded
- Features
- Backshell, Coupling Nut
- Ingress protection
- IP67 - Dust Tight, Waterproof
- Insert material
- Polyamide (PA), Nylon
- Material flammability rating
- -
- Mounting feature
- -
- Mounting type
- Free Hanging (In-Line)
- Operating temperature
- -40°C ~ 85°C
Variant comparison
| Parameter | T4110001031-000 | T4110001051-000 | T4110001081-000 | T4110002031-000 | T4110002041-000 | T4110002051-000 |
|---|---|---|---|---|---|---|
| Backshell material, plating | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Cable opening | 0.157\" ~ 0.236\" (4.00mm ~ 6.00mm) | 0.157\" ~ 0.236\" (4.00mm ~ 6.00mm) | 0.157\" ~ 0.236\" (4.00mm ~ 6.00mm) | 0.236\" ~ 0.315\" (6.00mm ~ 8.00mm) | 0.236\" ~ 0.315\" (6.00mm ~ 8.00mm) | 0.236\" ~ 0.315\" (6.00mm ~ 8.00mm) |
| Color | Black, Silver | Black, Silver | Black, Silver | Black, Silver | Black, Silver | Black, Silver |
| Contact material | Zinc Alloy | Bronze | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Current rating | 4A | 4A | 2A | 4A | 4A | 4A |
| Positions | 3 | 5 | 8 | 3 | 4 | 5 |
| Shell size - insert | M12-3 | M12-5 | M12-8 | M12-3 | M12-4 | M12-5 |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
