75 Ohm BNC Bulkhead Jack for RG-179 Coax

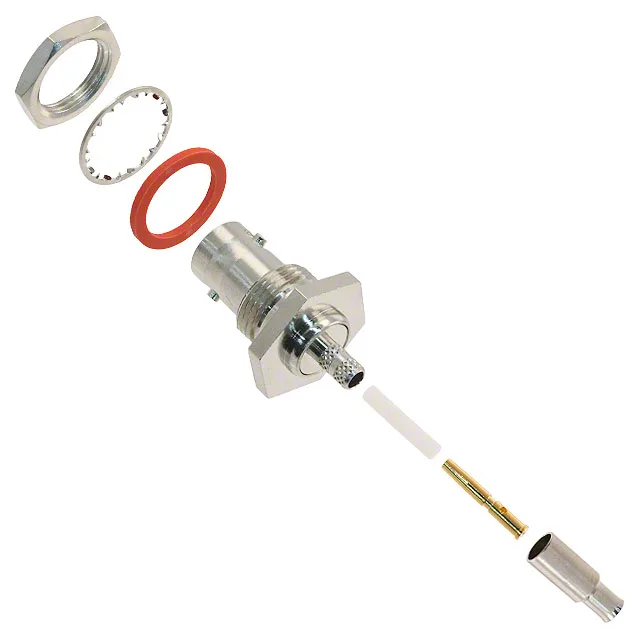

The 031-71016-RFX: This is the 75 Ohm variant — not the more common 50 Ohm BNC — so it belongs in video, broadcast, or precision instrumentation signal paths where the system impedance is 75 Ohm. The connector ships as a complete kit: one jack body, one crimp contact, one ferrule, one gasket, one insulator, one lockwasher, and one nut, all in a single order code.
Accepts RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 coax. Dielectric material is polyoxymethylene (POM) acetal.
Panel-mount bulkhead with front-side nut retention — the jack body passes through the panel from the outside, and the included nut and lockwasher clamp it from the rear.
The 031-70016 is the stripped-down sibling — same 75 Ohm BNC jack body, same 4 GHz ceiling, same 500 mating cycles, but it ships as only 3 pieces: the connector, lockwasher, and nut. No ferrule, no gasket, no insulator, no contact. If you need a one-and-done BOM line that includes every piece for a field termination, the 031-71016-RFX is the complete package.
Active lifecycle. No official second-source cross-reference exists for this 75 Ohm kit configuration.
