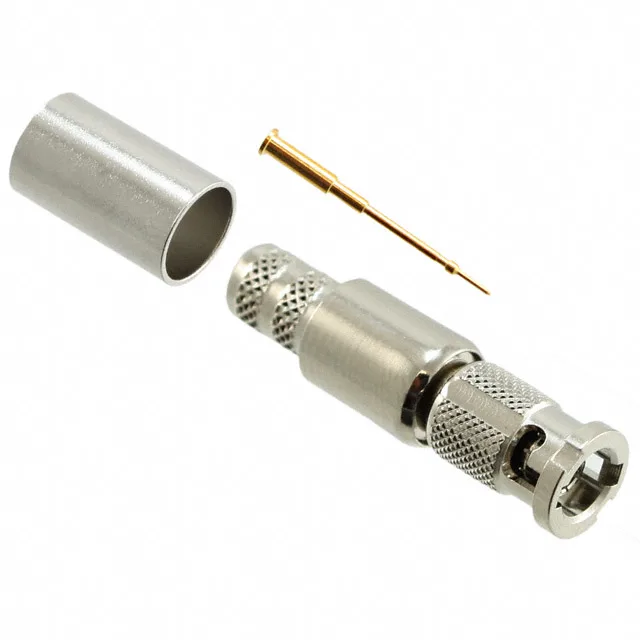

034-1027 — Amphenol product photo
Amphenol

Amphenol 034-1027 BNC HD Plug, 75 Ohm, 4 GHz, Crimp

MPN034-1027
Active

Amphenol BNC HD plug, 034-1027, 75 Ohm impedance, 4 GHz max frequency, crimp termination, bayonet lock, free-hanging, includes connector + contact + ferrule, nickel body.

$13.7100Ref. price · indicative, final on quote
034-1027 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

034-1027 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max4 GHz
Cable groupBelden 1695A
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

75 Ohm HD BNC Plug for Belden 1695A — What This Connector Is

The Amphenol 034-1027 is a 75 Ohm HD BNC plug, built for precision video and telecom signal paths where the 75 Ohm impedance match matters more than the generic 50 Ohm BNC standard. This is the high-density variant — the HD in the connector style means a slightly smaller shell profile than a standard BNC, designed for higher packing density on patch panels and equipment faces. The cable group is specced for Belden 1695A, a precision 75 Ohm coaxial cable common in broadcast video and high-end CCTV runs. The crimp termination — both shield and centre contact — gives a repeatable, tool-controlled termination that keeps the impedance consistent through the joint.

4 GHz Bandwidth and the 75 Ohm Signal Path

Rated to 4 GHz, this HD BNC covers the full baseband video spectrum (up to 3 GHz for 12G-SDI) with headroom.

Frequently asked questions

Where can I buy 034-1027 and what is the lead time?

Submit an RFQ for your quantity and we'll source it.

What cable does 034-1027 fit?

034-1027 is specced for Belden 1695A cable group. The crimp termination dimensions match that cable's dielectric diameter and braid coverage. If you are using a different 75 Ohm coax, verify the cable diameter against the ferrule and centre contact before ordering.

Does 034-1027 include the contact and ferrule?

You do not need to order the contact and ferrule separately for a single termination.
