6 GHz BNC HD for sealed RF runs
The Amphenol RF 034-5019 is a BNC HD panel-mount jack that pushes the standard BNC interface to 6 GHz — well past the typical 4 GHz ceiling of a conventional BNC. The HD variant uses a thicker dielectric and tighter mechanical tolerances to hold 50 Ohm impedance through the bulkhead transition, which matters when you're running L-band, GPS, or wideband video through a sealed enclosure. The IP67 rating means the bayonet-lock mate holds a dust-tight, waterproof seal when paired with a matching IP67 BNC HD plug, so this connector suits outdoor antenna feeds, broadcast trucks, or industrial sensor networks where rain and washdown are routine.

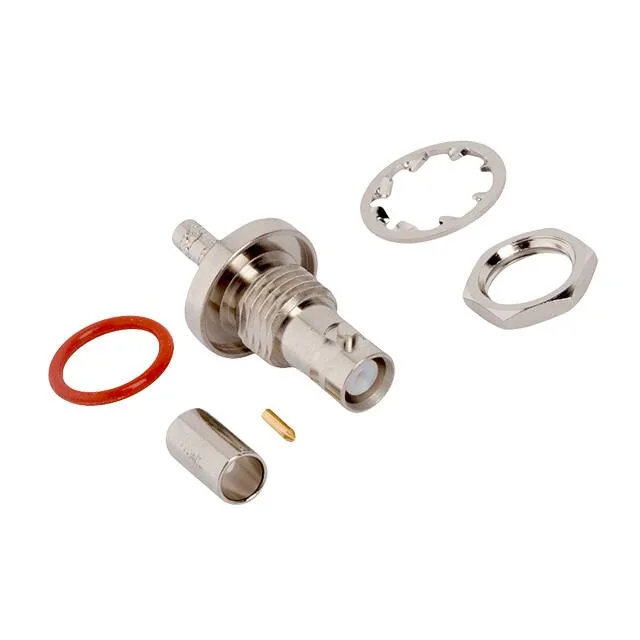

Cable fit and what comes in the kit
This jack is crimped onto the cable shield and soldered to the centre contact. The cable group covers RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174 — all 50 Ohm flexible coax.
Construction and environmental range
The beryllium copper contact maintains spring force across the full temperature swing, which is important for a sealed connector that may cycle between cold outdoor storage and hot equipment operation. The PTFE dielectric holds stable impedance up to the 6 GHz limit without significant phase shift from thermal expansion.
