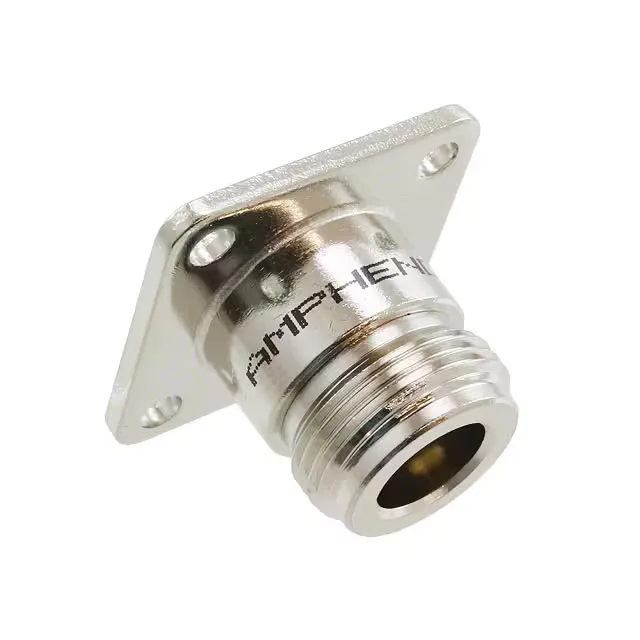

082-6101-RFX — Amphenol product photo
Amphenol

082-6101-RFX N-Type Receptacle, 50 Ohm, 11 GHz, Panel Mount

MPN082-6101-RFX
Active

Amphenol RF 082-6101-RFX N-type receptacle, female socket, 50 Ohm, 11 GHz, panel mount with flange, solder cup termination, gold-plated center contact, nickel body, bulk.

$8.3900Ref. price · indicative, final on quote
082-6101-RFX datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

082-6101-RFX Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Mounting featureFlange
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

N-Type Panel Receptacle, 50 Ohm to 11 GHz

The Amphenol RF 082-6101-RFX is an N-type female receptacle — a threaded, 50 Ohm RF connector designed for panel-mount installations where a durable, weather-resistant interface is needed.

This is a flange-mount receptacle — four screw holes in the flange secure it to a panel, and the threaded mating interface (N-type male plug) tightens with a wrench. The center contact and shield are both solder-terminated: you tin the coax center conductor, solder it into the contact cup, and solder the braid to the shield cup. No crimp tool needed, but a clean solder joint is critical at 11 GHz.
