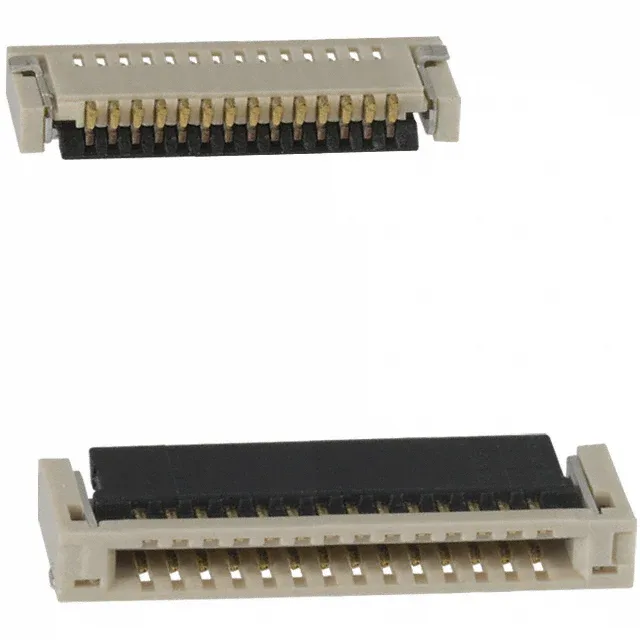

10051922-1410ELF — Amphenol product photo

10051922-1410ELF Amphenol ICC VLL 14-Pos 0.50mm FPC

MPN10051922-1410ELF
Active

Amphenol ICC (FCI) VLL series, 14-position FPC connector, 0.50mm pitch, right-angle SMT, ZIF slide-lock actuator, gold-plated bottom contacts, UL94 V-0 LCP housing, rated 0.5 A at 50 V.

$0.7200Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

10051922-1410ELF Technical Specifications
ParameterValue
SeriesVLL
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~85°C
Housing colorNatural
Actuator colorBlack
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Actuator materialPolyamide (PA9T), Nylon 9T, Glass Filled
Height above board0.051\" (1.30mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions14
Contact finish thickness2.00µin (0.051µm)

Product details

No insertion force on the cable, which matters when the FPC is fragile or the assembly is automated. Gold plating at 2.00 µin on the contact surface is a thin flash — adequate for the rated 20 mating cycles. If the connector sees repeated rework, a thicker gold contact would be a better fit.

The narrow 0.50 mm pitch limits the conductor cross-section and the contact beam geometry, so the per-contact current is well below what a larger-pitch connector would carry. For power delivery, you'd need a separate connector or multiple contacts paralleled (with derating).

RoHS compliant. The housing is natural LCP with a black PA9T actuator — the colour difference helps visual inspection on the pick-and-place line.

The same VLL series offers 15-position (10051922-1510ELF) and 16-position (10051922-1610ELF) variants. All share the 0.50 mm pitch, 1.30 mm height above board, right-angle SMT footprint, and ZIF slide lock.

Frequently asked questions

What is the exact mating cycle rating for 10051922-1410ELF?

20 mating cycles. This is a low-cycle-life connector — suited for one-time assembly or infrequent service, not for repeated field reconnection.

Does 10051922-1410ELF have a slide lock actuator?

Yes, the locking feature is a slide lock. It is a ZIF (Zero Insertion Force) design — push the actuator forward to clamp the FPC, no insertion force required on the cable.

What is the closest functional second-source for 10051922-1410ELF?

The 10051922-1410EHLF is a peer variant with the same position count, pitch, and ZIF slide lock, but uses a halogen-free LCP housing. Confirm the housing material requirement before substituting.
