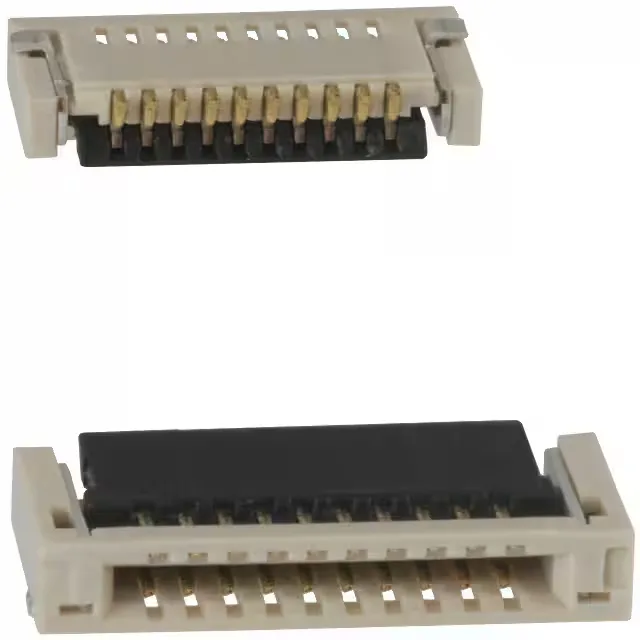

10051922-1010ELF — Amphenol product photo
Amphenol

10051922-1010ELF FPC Connector, 0.50mm Pitch, 10 Pos, ZIF

MPN10051922-1010ELF
Active

Amphenol ICC (FCI) VLL series, 10-position FPC connector, 0.50mm pitch, right-angle SMT, ZIF slide lock, gold-plated contacts, 0.5A, 50V, UL94 V-0.

$0.6300Ref. price · indicative, final on quote
10051922-1010ELF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10051922-1010ELF Technical Specifications
ParameterValue
SeriesVLL
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~85°C
Housing colorNatural
Actuator colorBlack
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Actuator materialPolyamide (PA9T), Nylon 9T, Glass Filled
Height above board0.051\" (1.30mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions10
Contact finish thickness2.00µin (0.051µm)

Product details

10-Position FPC Connector with ZIF Slide Lock

The contacts sit on the bottom side of the connector, matching FPC pads on the same side.

The contact finish is 2.00µin gold over copper alloy — a flash plating that handles 20 mating cycles minimum. For a connector that sees occasional field service (battery swaps, display module changes), that cycle life is adequate; for high-cycle production test fixtures, you'd want thicker gold.

Position Variants in the VLL Series

The VLL series offers the same 0.50mm pitch and 1.30mm height in 12-position (10051922-1210ELF) and 14-position (10051922-1410ELF) versions — identical footprint except for the contact count. If your BOM calls for more I/O without changing the connector family, those are direct drop-ins on the same pitch and stack height. A black-housing variant, 10051922-1010EHLF, shares the same 10-position layout, gold plating, and ZIF slide lock — the only difference is the housing color, which may matter for visual polarity coding on the assembly line.

Frequently asked questions

What is the pitch and position count of 10051922-1010ELF?

The pitch is 0.50mm (0.020") and the connector has 10 positions. This sets the PCB footprint — the mating FPC must have 0.50mm pitch pads on the bottom side.

Is 10051922-1010ELF a ZIF connector?

Yes, it is a zero insertion force (ZIF) connector with a slide lock actuator. The FPC inserts without force, then the slide lock secures it.

What is the closest functional second-source for 10051922-1010ELF?

The black-housing variant 10051922-1010EHLF is electrically and mechanically identical — same pitch, positions, gold plating, and ZIF lock. The only difference is housing color, which does not affect fit or function.
