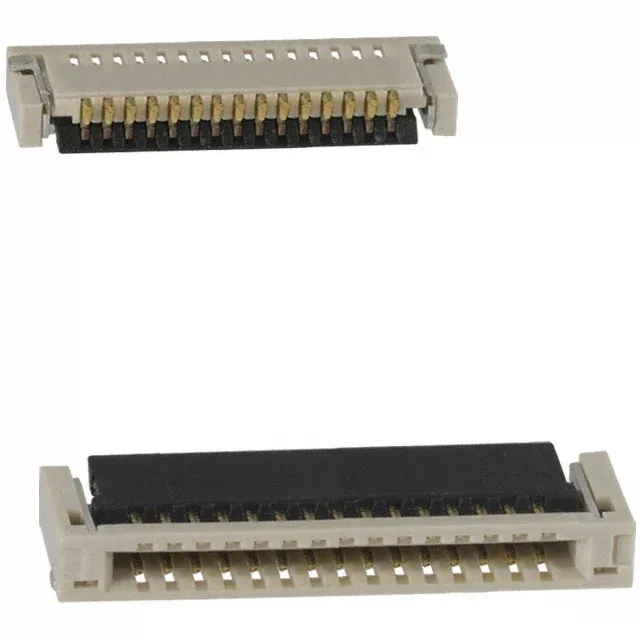

Amphenol ICC (FCI) VLL series FPC connector, 15 positions, 0.50 mm pitch, right-angle SMT, ZIF slide-lock actuation, gold-plated bottom contacts, solder retention, UL94 V-0 LCP housing, rated 0.5 A at 50 V, -55°C to 85°C.
| Parameter | Value |
|---|---|
| Series | VLL |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -55°C~85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Height above board | 0.051\" (1.30mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 15 |
| Contact finish thickness | 2.00µin (0.051µm) |
The 10051922-1510ELF is a 15-position, 0.50 mm pitch FPC connector from the Amphenol ICC (FCI) VLL series. It terminates a 0.30 mm thick FPC with bottom contacts, using a zero-insertion-force (ZIF) slide lock to secure the flex without stressing the pads. The right-angle SMT orientation places the FPC parallel to the board, keeping the z-height at 1.30 mm above the PCB — useful for tight enclosures where vertical clearance is scarce.
The pitch is 0.020" (0.50 mm). This is a fine-pitch FPC connector — the PCB footprint must accommodate narrow trace and space widths on the fan-out layer.
Yes.
