Amphenol ICC (FCI) Minitek127® 1.27mm Series, Board to Board Header, 8 Positions, 2 Rows, Through Hole, Solder Termination, Unshrouded, Gold Mating Finish, 1 A per Contact, 125 VAC, UL94 V-0, Black Insulation, Tube Package
Amphenol ICC (FCI) Minitek127® 1.27mm Series, Board to Board Header, 8 Positions, 2 Rows, Through Hole, Solder Termination, Unshrouded, Gold Mating Finish, 1 A per Contact, 125 VAC, UL94 V-0, Black Insulation, Tube Package
$0.7100Ref. price · indicative, final on quote
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

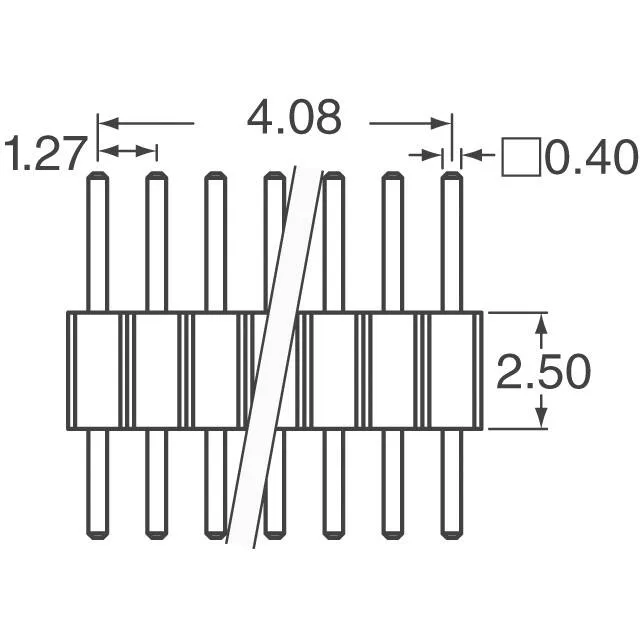

Specifications
| Parameter | Value |
|---|---|
| Series | Minitek127® 1.27mm |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC |
| Current rating | 1A per Contact |
| Operating temperature | -55°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.098\" (2.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 8 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.091\" (2.30mm) |
| Overall contact length | 0.309\" (7.86mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Product details
Frequently asked questions
What mates with 20021111-00008T4LF?
As an unshrouded header, it mates with any Minitek127 1.27 mm pitch receptacle or socket that accepts 8 positions in a dual-row layout.
