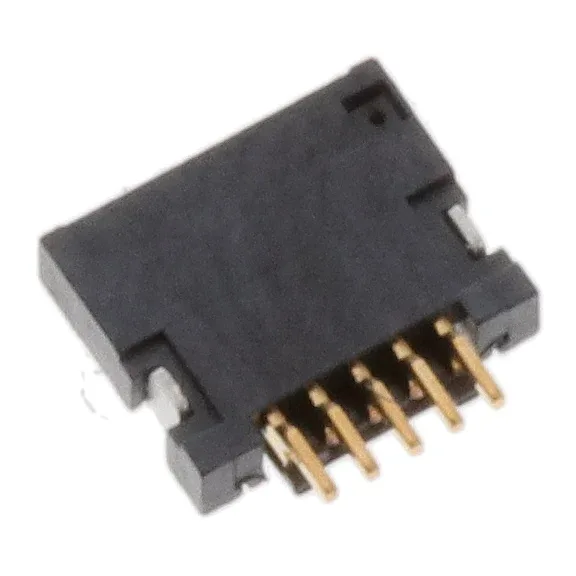

59453-051110EDHLF — Amphenol product photo
Amphenol

59453-051110EDHLF Amphenol ICC (FCI) SFVL 5-Position FPC

MPN59453-051110EDHLF
Active

Amphenol ICC (FCI) SFVL series, 5-position FPC connector, 0.50mm pitch, right-angle SMT, ZIF slide lock, gold contacts, 0.4A, -55°C to 85°C

$0.4700Ref. price · indicative, final on quote
59453-051110EDHLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

59453-051110EDHLF Technical Specifications
ParameterValue
SeriesSFVL
Mounting typeSurface Mount, Right Angle
Cable end typeNotched
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.4A
Operating temperature-55°C~85°C
Housing colorBlack
Actuator colorBlack
Contact materialCopper Alloy
Housing materialThermoplastic, Glass Filled, Halogen Free
Actuator materialThermoplastic, Glass Filled, Halogen Free
Height above board0.035\" (0.88mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles10
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions5

Product details

The 59453-051110EDHLF is a 5-position FPC connector from the SFVL series by Amphenol ICC (FCI). It uses a 0.50mm pitch and a right-angle SMT footprint, which keeps the board-edge height to 0.88mm — useful for tight z-height budgets in portable or panel-mount gear.

Rated Current, Temperature, and Mating Cycles

The housing material (glass-filled thermoplastic) stays dimensionally stable across this range, so the ZIF mechanism retains its clamp force. Mating cycles are rated at 10 — typical for a connector that sees assembly once and stays mated for the product life. If your application requires frequent cable swaps, this is not the part for that duty.

Frequently asked questions

What is the pitch of 59453-051110EDHLF?

The pitch is 0.020" (0.50mm).

Is 59453-051110EDHLF a zero insertion force (ZIF) connector?

Yes, it uses a ZIF mechanism with a slide lock actuator.

How many mating cycles does 59453-051110EDHLF support?

Rated for 10 mating cycles minimum.
