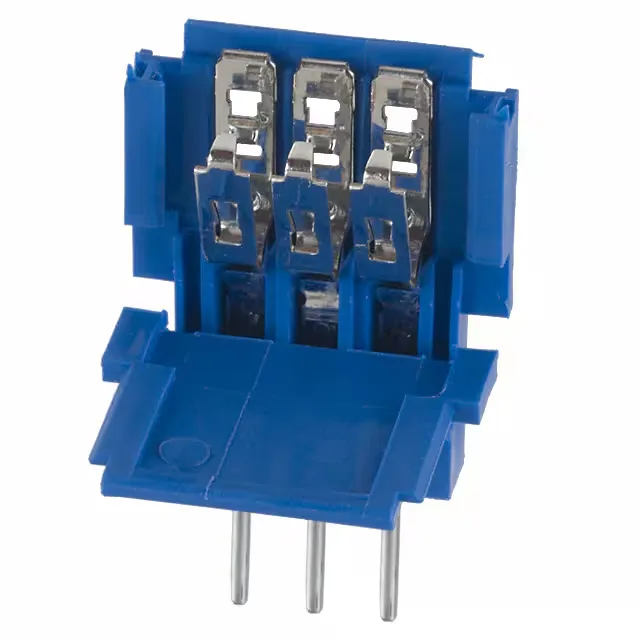

66226-003LF — Amphenol product photo
Amphenol

66226-003LF Amphenol ICC FCI Clincher FFC Header 3 Pos

MPN66226-003LF
Active

Amphenol ICC (FCI) Clincher™ series, 66226-003LF — FFC header, 3 positions, 0.100" (2.54 mm) pitch, ZIF slide-lock actuation, tin-plated contacts, rated 2 A at 500 V, free-hanging in-line mount, operating from -65°C to 105°C.

$0.8800Ref. price · indicative, final on quote
66226-003LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66226-003LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC
Connector (Contact type)Header
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions3
Contact finish thickness100.0µin (2.54µm)

Product details

Three-Position FFC Header for Signal Interconnects

The 66226-003LF: It uses a zero insertion force (ZIF) mechanism with a slide lock — the actuator opens the contact beams, the FFC slides in straight, and the lock clamps the foil without stressing the copper traces. Tin-plated contacts rated 2 A per circuit at 500 V, with a 100-cycle mating life. The tin finish keeps cost low for set-and-forget interconnects inside an enclosure — not a frequent-disconnect point. Accepts FFC thicknesses of 0.30 mm or 0.33 mm, with straight or tapered cable-end types. The free-hanging in-line mount means no board footprint — the header terminates to the FFC and the assembly floats in the harness.

RoHS compliant.

Frequently asked questions

What is the pitch and pin count of the 66226-003LF?

It is a header for FFC cable, not a receptacle — the FFC inserts directly into the ZIF clamp.

What FFC thickness does the 66226-003LF accept?

It accepts FFC with a thickness of 0.30 mm or 0.33 mm. The cable end can be straight or tapered.

How many mating cycles are rated for this connector?

100 mating cycles minimum. The tin contact finish is cost-effective for low-cycle interconnects — not intended for frequent disconnect/reconnect duty.

Where can I buy the 66226-003LF and get a price?

Submit an RFQ for a firm position.
