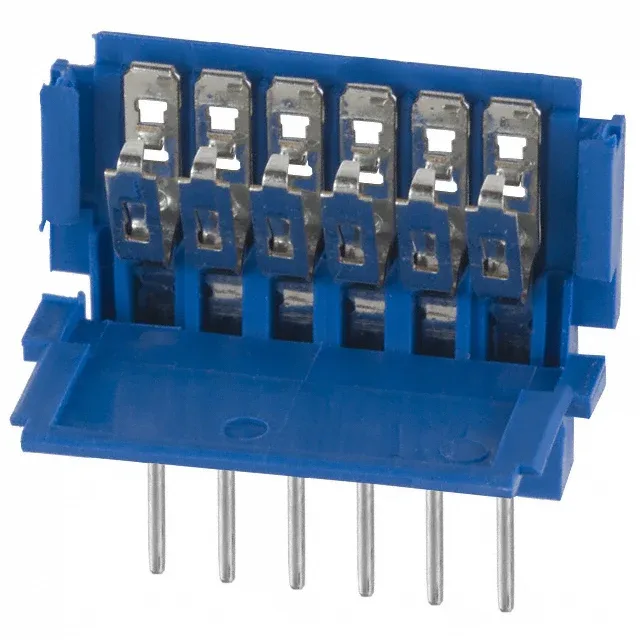

Amphenol ICC (FCI) Clincher™ series FFC header, 6 positions, 0.100" (2.54mm) pitch, ZIF flip-lock, tin-plated contacts, 2 A, 500 V, UL94 V-0, -65°C to 105°C, free-hanging mount.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting type | Free Hanging (In-Line) |
| Cable end type | Tapered |
| Flat flex type | FFC |
| Connector (Contact type) | Header |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 6 |
| Contact finish thickness | 100.0µin (2.54µm) |
The 66226-006LF: Zero Insertion Force (ZIF) with a flip-lock backlock means the FFC slides in with no insertion force, then the actuator clamps the contacts against the pads — no tool required, no risk of bent pads during assembly. The header accepts 0.30mm-thick FFC with a tapered cable end, which helps guide the cable into the contact slot without stubbing.
RoHS compliant, sourced in tray packaging.
The 66226-006LF is an active-production part. It is sourced per RFQ — submit a request for your BOM quantity and we will confirm availability and current pricing at quote time.
Yes — it features Zero Insertion Force (ZIF) with a flip-lock backlock actuator. The FFC slides in freely, then the actuator clamps the contacts against the pads.
The pitch is 0.100" (2.54mm), a standard FFC pitch that matches widely available cable.
The closest sibling is the 66226-007LF (7 positions); the 66226-005LF (5 positions) and 66226-004LF (4 positions) are also available in the same Clincher series with identical specs.
