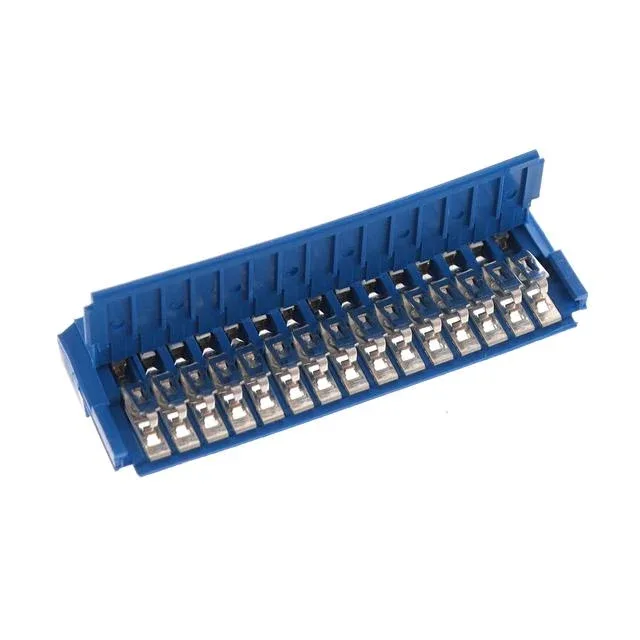

Amphenol ICC (FCI) Clincher™ series, 15-position FFC receptacle, 0.100" (2.54 mm) pitch, ZIF flip-lock actuation, tin-plated contacts, free-hanging mount, 2 A, 500 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting | Free Hanging (In-Line) |
| Cable end type | Tapered |
| Flat flex type | FFC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 15 |
| Contact finish thickness | 100.0µin (2.54µm) |
The tin-plated copper nickel alloy contacts are rated for 2 A per circuit at 500 V, with a 100-cycle mating life — adequate for field-service swaps where the connector sees occasional disconnect, not daily re-termination.
The 67516-012LF shares the same 0.100" pitch, tin finish, and 0.30 mm FFC thickness but carries 12 positions — a direct drop-in for a 12-circuit BOM line.
The 67516-012LF is a 12-position version of the same Clincher™ series, with identical pitch, tin finish, and 0.30 mm FFC thickness.
