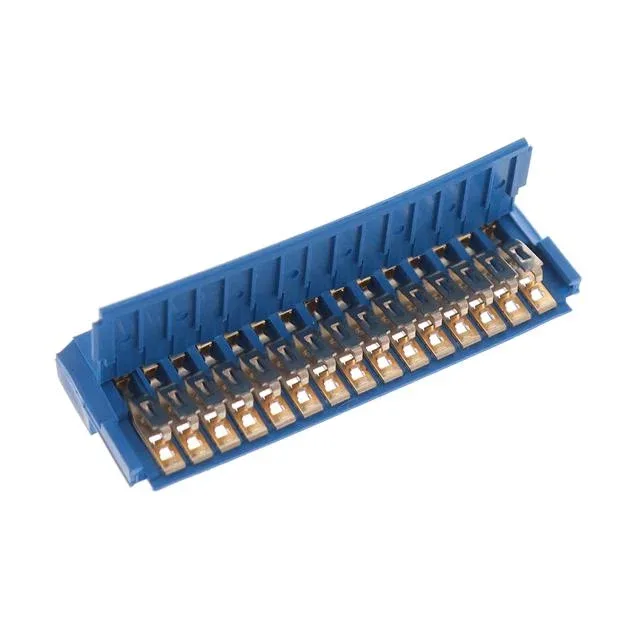

Amphenol ICC (FCI) Clincher™ series, 67516-215LF, 15-position FFC receptacle, 0.100" (2.54mm) pitch, ZIF flip-lock actuator, 30µin gold-plated contacts, rated 2A, 500V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting type | Free Hanging (In-Line) |
| Cable end type | Notched |
| Flat flex type | FFC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Black |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Gold or Gold, GXT™ |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.20mm |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 67516-215LF is a 15-position FFC receptacle from the Amphenol ICC (FCI) Clincher™ series.
This receptacle accepts FFC with a thickness of 0.20mm and a notched cable end. The ZIF mechanism means the FFC is inserted with the actuator open, then the flip lock closes to hold the cable in place without stress on the contacts.
Yes, the 67516-215LF uses a Zero Insertion Force (ZIF) flip-lock actuator. The FFC slides into the connector with the actuator open, then the flip lock clamps the contacts — no force is needed on the cable during insertion.
No, the 67516-215LF is specified for FFC with a thickness of 0.20mm. A 1mm thick FFC will not fit the contact beam spacing and may damage the connector.
