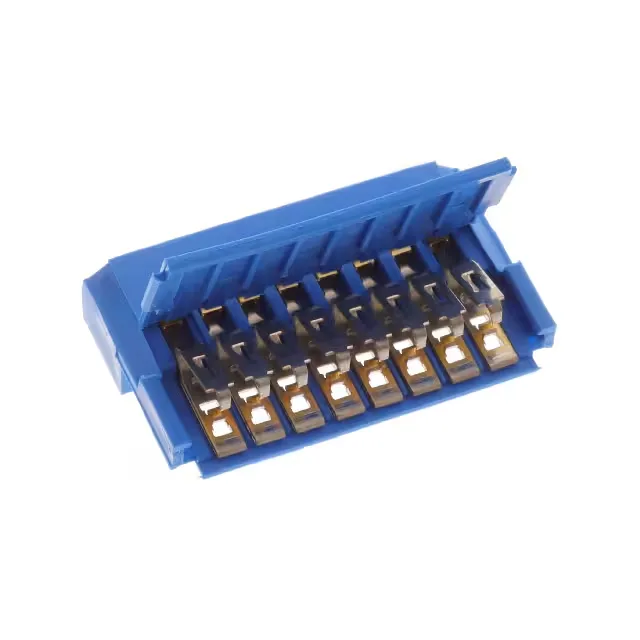

67516-208LF — Amphenol product photo
Amphenol

67516-208LF Amphenol ICC (FCI) Clincher™ FFC Receptacle

MPN67516-208LF
Active

Amphenol ICC (FCI) Clincher™ 67516-208LF, 8-position FFC receptacle, 0.100" (2.54mm) pitch, ZIF flip-lock, 30µin gold contacts, 2 A, 500 V, free-hanging solder termination.

$4.1700Ref. price · indicative, final on quote
67516-208LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

67516-208LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeNotched
Flat flex typeFFC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishGold or Gold, GXT™
Locking featureFlip Lock, Backlock
FFC, FCB thickness0.20mm
Positions8
Contact finish thickness30.0µin (0.76µm)

Product details

8-Way FFC Receptacle with ZIF Flip Lock

The 67516-208LF is an 8-position FFC receptacle from the Clincher™ series, built for free-hanging (in-line) termination. Zero insertion force (ZIF) actuation with a flip lock and backlock — slide the notched FFC in, close the lock, and the contact beams grip without scraping the pads. Rated for 100 mating cycles minimum.

Position Count vs. Siblings: 8 vs. 15

The 8-position 67516-208LF is the low-circuit-count option in the Clincher™ line. Compared to the tin-plated 67516-012LF (12 positions, 0.30mm FFC thickness) and 67516-015LF (15 positions, 0.30mm), the 67516-208LF uses 30µin gold and accepts a thinner 0.20mm FFC — a better fit for higher-cycle or corrosive environments.

Active lifecycle status — no EOL or NRND flags. RoHS compliant.

Frequently asked questions

Where can I buy the 67516-208LF and how is it quoted?

The 67516-208LF is sourced through independent distribution. No stock-holding claim — each order is sourced fresh.

What FFC thickness does the 67516-208LF accept?

It accepts 0.20mm thick FFC with a notched cable end. The ZIF lock holds the cable without extra hardware.
