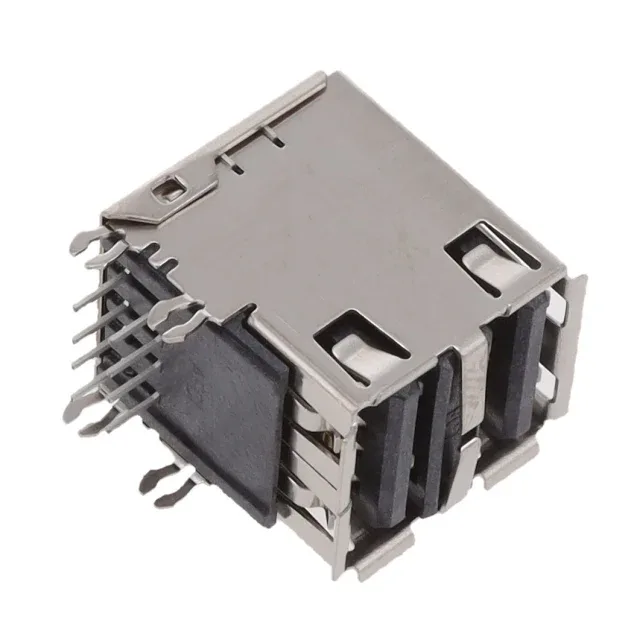

72309-5044BLF — Amphenol product photo
Amphenol

FCI 72309-5044BLF USB-A Stacked Receptacle, 8 Contacts

MPN72309-5044BLF
Active

FCI 72309 series USB-A (USB TYPE-A) stacked receptacle, 8 contacts (2 ports), right-angle through-hole, shielded, board lock, gold GXT™ plating, 1.5A per contact, UL94 V-0.

$2.6500Ref. price · indicative, final on quote
72309-5044BLF datasheet
StockIn Stock (22)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

72309-5044BLF Technical Specifications
ParameterValue
Series72309
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A), Stacked
Current rating1.5A per Contact
Positions8
Mounting featureHorizontal
Operating temperature-55°C~85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTube
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold, GXT™
SpecificationsUSB 2.0
Number of ports2

Product details

Stacked USB-A Receptacle for Panel-Mount Applications

The FCI 72309-5044BLF is a stacked USB-A (USB TYPE-A) receptacle from the 72309 series, designed for USB 2.0 applications. It has two ports and 8 contacts in a right-angle through-hole package.

Right-angle orientation means the USB ports sit parallel to the PCB, so the connector body overhangs the board edge — plan your enclosure cutout accordingly. The horizontal mounting feature is key: the ports face outward from the board edge, not upward.

Contact Plating and Mating Durability

Contacts are finished with gold over the GXT™ underplate.

Shielding and Compliance

The shielded shell, made from copper alloy, provides EMI containment for the differential data pairs — important for passing FCC radiated-emission limits in commercial equipment. RoHS compliance is confirmed on the line.
