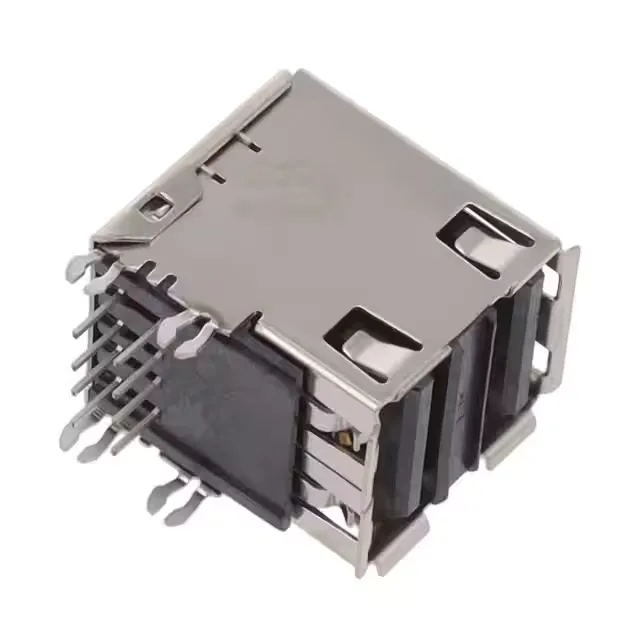

72309-7024BLF — Amphenol product photo
Amphenol

FCI 72309-7024BLF USB 2.0 Stacked Receptacle, 8 Contacts

MPN72309-7024BLF
Active

FCI 72309 series USB 2.0 Type-A stacked receptacle, 8 contacts (2 ports), through-hole right-angle, shielded, gold GXT™ plating, board lock, 1.5A per contact, 1500 mating cycles, UL94 V-0.

$2.6500Ref. price · indicative, final on quote
72309-7024BLF datasheet
StockIn Stock (31)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

72309-7024BLF Technical Specifications
ParameterValue
Series72309
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A), Stacked
Current rating1.5A per Contact
Positions8
Mounting featureHorizontal
Operating temperature-55°C~85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTube
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold, GXT™
SpecificationsUSB 2.0
Number of ports2

Product details

Stacked USB-A Receptacle for Dual-Port Panel Mount

The FCI 72309-7024BLF is a USB 2.0 Type-A stacked receptacle — two ports stacked vertically in a single through-hole right-angle package. It carries 8 contacts total (4 per port), rated at 1.5A per contact, which is the standard current for USB 2.0 signal and low-power charging duty. The shield is copper alloy with gold GXT™ plating on the contacts, giving it corrosion resistance for repeated mating in consumer and commercial equipment enclosures. With 1500 mating cycles rated, this receptacle handles daily plug/unplug in test equipment, kiosks, or front-panel I/O without contact wear becoming an issue.

Frequently asked questions

Where can I buy the 72309-7024BLF?

Current pricing and stock availability are confirmed at quote time — submit a request for your target quantity.

Is the 72309-7024BLF RoHS compliant?

Yes, the 72309-7024BLF is listed as RoHS Compliant.
