Stacked USB 2.0 Receptacle for Panel-Mount or Board-Edge Duty

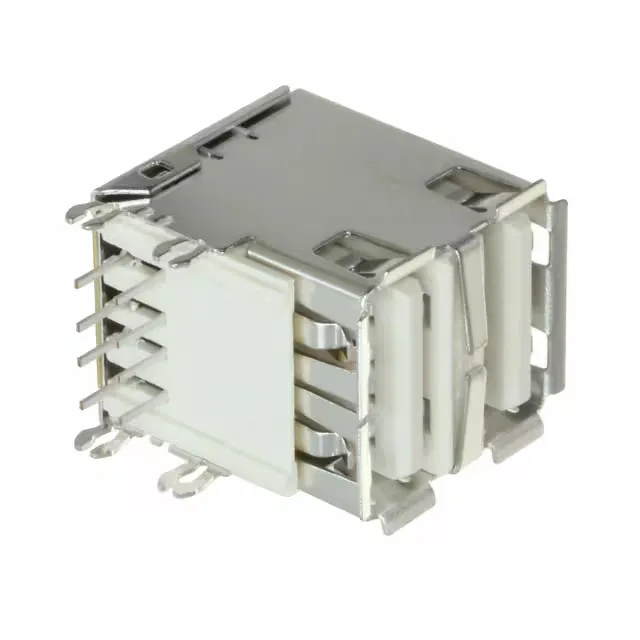

The Amphenol FCI 72309-8044BLF is a stacked USB-A (USB TYPE-A) receptacle housing two ports in a single right-angle through-hole package. The white insulator and shielded shell with copper alloy material give it a place on any PCB edge where two USB host ports are needed in a single footprint. Board locks on the mounting ears anchor the connector during soldering and resist the shear force of repeated cable insertion and removal.
Shielded vs Unshielded — Choosing Between 72309-8044BLF and 72309-8014BLF
The 72309-8044BLF is shielded; the 72309-8014BLF is unshielded. Everything else — 8 contacts, 2 ports, USB 2.0, 1.5 A per contact, 1500 mating cycles, gold GXT™ plating, board lock, white insulator, tube packaging — is identical. The shielded version adds a copper alloy shell that bleeds EMI to the PCB ground plane, which matters if the USB ports are on a board edge near other noisy I/O or if the product must pass radiated emissions testing. For a cost-sensitive build in a shielded enclosure, the unshielded sibling saves the shell cost.
