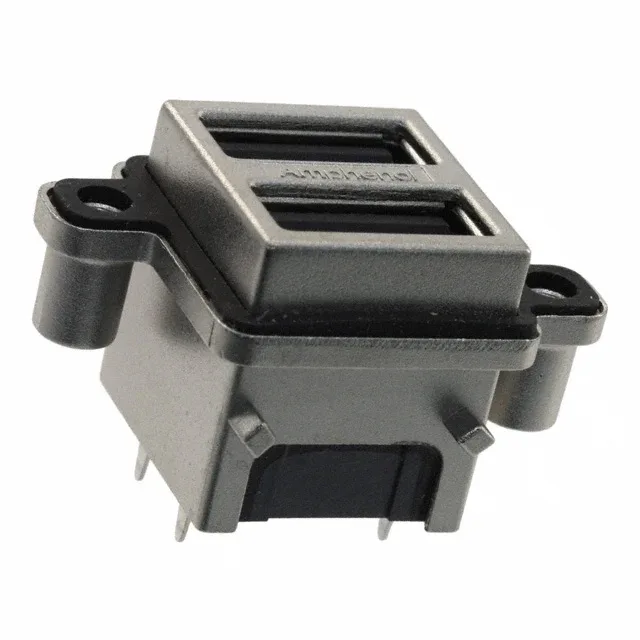

MUSB-C511-00 — Amphenol product photo
Amphenol

MUSB-C511-00 Amphenol ICC USB-A Stacked Receptacle IP67

MPNMUSB-C511-00
Active

Amphenol ICC MUSB series USB-A stacked receptacle, order code MUSB-C511-00, 8 contacts, USB 2.0, IP67, gold contact finish, panel mount through hole, solder termination, shielded.

$14.2800Ref. price · indicative, final on quote
MUSB-C511-00 datasheet
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSB-C511-00 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole
Connector typeUSB-A (USB TYPE-A), Stacked
Current rating1.5A
Positions8
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Vertical
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Sealed USB-A stacked receptacle, 8 contacts

The MUSB-C511-00 is the 8-contact, single-port USB-A stacked receptacle from Amphenol ICC's MUSB series, rated IP67 when mated — the flange and panel seal keep dust and water out of the enclosure.

Mating cycles and signal duty

Rated for 1500 mating cycles — the gold contact finish supports repeated connect-disconnect in field-service or test equipment without fretting corrosion. USB 2.0 specification support covers the data-rate ceiling for most industrial and commercial peripheral connections; the shielded shell and copper alloy shield material contain radiated emissions within the USB 2.0 envelope.

Frequently asked questions

What compliance documentation does Amphenol ICC (Commercial Products) provide for MUSB-C511-00?

The MUSB-C511-00 is RoHS Compliant per. No REACH or IEC certification is listed in the available specification data.
