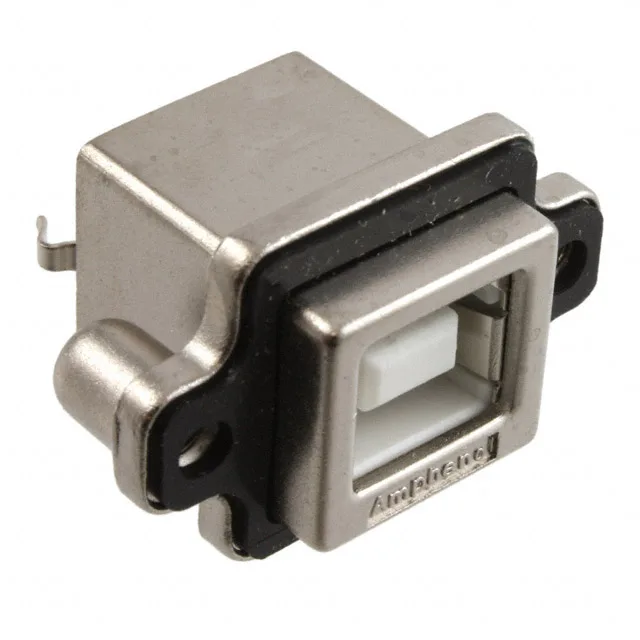

Amphenol ICC MUSB series USB-B receptacle, order code MUSB-D511-00, 4 contacts, USB 2.0, IP67, gold-plated contacts, panel mount through-hole, solder termination, shielded, board lock.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Panel Mount, Through Hole |
| Connector type | USB-B (USB TYPE-B) |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Vertical |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | White |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSB-D511-00 is a 4-contact USB-B receptacle from the Amphenol ICC MUSB series, specified for USB 2.0 and rated IP67 when mated. Gold-plated contacts carry 1.5 A per circuit; the shielded shell is copper alloy with board locks for retention during soldering.
The MUSB-D511-00 is available for order through distribution. Request a quote for current pricing and lead time.
The MUSB-D511-00 is a Receptacle from the MUSB series.
Amphenol ICC provides RoHS compliance documentation for the MUSB-D511-00.
